HWISEL EV FAST DC CHARGER LEVEL 3 30KW 80A 480VAC
HWisel - EV Fast DC Charger Level 3 100 kW 480 VAC

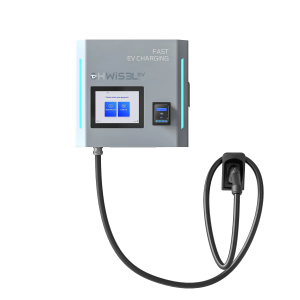

Introducing the FAST DC CHARGER LEVEL 3 (30KW 80A 480VAC) by HWISEL EV, a leading name in commercial DC Electric Vehicle (EV) Charging Stations. The EVSIS, 480 VAC charger offers a robust 30 kW output, capable of adding up to 87 miles of range per hour. Crafted with precision and quality assurance, this charger ensures both safety and user intuitiveness. Its slim design makes it an ideal choice for compact spaces, offering a seamless charging experience for electric vehicle owners.
Charging Speed
Experience swift charging with HWISEL EV's FAST DC CHARGER LEVEL 3. With a charging time as low as 2 hours (when charging a 70kWh battery from 20% to 80% capacity), this charger ensures efficient power delivery, keeping your electric vehicle ready for the road in no time.
Technical Specifications
| General | |
| Model | JC-9A31-30-CT |
| Number of charging ports | 1, CCS Combo |
| Push Buttons | 1 physical emergency stop button |
| Display | Easy to use 12.1” LCD touchscreen interface showing energy dispensed and real-time cost |
| Electric | |
| Power Factor | > 0.96 (Full Scale) |
| Charging Mode | CC, CV |
| Voltage Accuracy | ±1.0% (Full Scale) |
| Current Accuracy | ±1.0% (Full Scale) |
| Efficiency | > 94% (at rated voltage, rated current) |
| Output | Voltage: 150~1,000VDC(Max), Current: 80A(Max), Max power: 30kW |
| Isolation Impedance | 1OMΩ@1,000V |
| Operating Temp | -30 °C ~ 50 °C / -22 °F ~ 122 °F |
| Working Humidity | < RH95% (Non-condensing) |

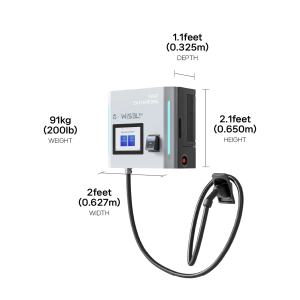

| Dimensions | 650(W) x 622.4(H) x 325.1(D) mm (25.6(W) x 24.5(H) x 12.8(0) inch) |
| Weight | 200 lb (91 kg) |
| Warranty Protection | 2-year parts warranty with up to 5 years available. |
| User Rating | N/A |
| Price | N/A |
Smart Features of HWisel - EV Fast DC Charger Level 3 100 kW 480 VAC
- Networked or Non-Networked charger: Offers flexibility in connectivity options.
- Remote monitoring and control: Allows users to oversee and manage charging remotely.
- Compatible with all CCS vehicles: Ensures compatibility with a wide range of electric vehicles.
- Front and side doors for maintenance: Simplifies maintenance procedures for hassle-free upkeep.
- Easy installation and minimal maintenance: Reduces downtime and ensures smooth operation.
- Advanced service support: Delivers comprehensive support for optimal performance.
- Remote update for optimal operation: Ensures the charger is always up-to-date for peak efficiency.
Product guides and documents of HWisel- EV Fast DC Charger Level 3 100 kW 480 VAC
HWISEL EV FAST DC CHARGER LEVEL 3 30KW 80A 480VAC Specification Sheet
Advantages of the HWisel- EV Fast DC Charger Level 3 100 kW 480 VAC
- High charging speed: Adds significant range in a short amount of time, ideal for busy schedules.
- Reliable performance: Built with quality assurance, ensuring consistent and safe charging.
- Compact design: Space-saving construction perfect for various environments.
- User-friendly operation: Intuitive features make charging hassle-free for all users.
- Comprehensive support: Access to advanced service and maintenance assistance for peace of mind.
- Future-proof technology: Remote updates ensure the charger stays current with evolving EV technology.
Disadvantages of the HWisel- EV Fast DC Charger Level 3 100 kW 480 VAC
- Limited compatibility: May not support all types of electric vehicles, depending on the charging standard.
- Initial investment: Higher upfront cost compared to standard charging options.
- Dependency on network connectivity: Networked features rely on stable internet connection for full functionality.
- Maintenance requirements: Regular upkeep may be necessary for prolonged performance.
- Installation considerations: Some installations may require additional electrical work for compatibility.
- Space constraints: May not be suitable for locations with limited space availability.
