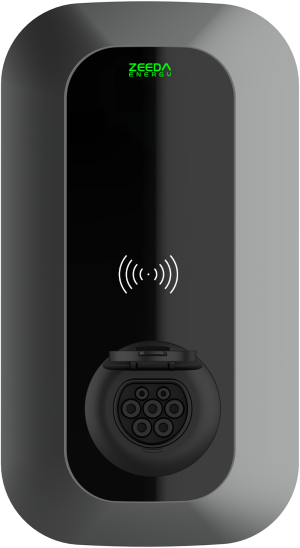

Zhidatech ZeedaWallbox B Series
Zhidatech - ZeedaWallbox B Series
The Zdenergy ZeedaWallbox B Series is a compact and portable EV charger, designed for seamless charging solutions in any location with a power supply. Its robust and weatherproof design ensures reliable performance, even in outdoor environments. Built for convenience, it features modular construction, CE certification, and is optimized for fleet operations with fast-charging capabilities.
Equipped with advanced technology, the ZeedaWallbox B Series supports remote monitoring and OTA upgrades, enhancing functionality. Its compatibility with multiple authentication modes and smart connectivity ensures efficient energy management. This charger combines innovation with reliability for sustainable electric vehicle charging solutions.
Charging Speed
The Zdenergy ZeedaWallbox B Series delivers a 7KW charging capacity with 32A at 230V, ensuring efficient and fast charging for electric vehicles in diverse operational settings.
Technical Specifications
| SPECIFICATIONS | |
| Power | 7KW |
| Current | 32A |
| Authentication | Plug and Charge; RFID Authentication Optional |
| Connectivity | Customer App, WiFi + BT, OCPP 1.6 (Optional) |
| Ingress Protection | IP65 |
| Relative Humidity | 5-95%, Without Condensation |
| Operating Temperature | -30℃～+50℃ |
| Relative Humidity | 5-95%, without condensation |
| Residual Current Protection Rated Operating Current | 30mA, +DC 6mA |
| Operating Temperature | -20℃～+50℃ |
| Storage Temperature | -25℃～+70℃ |
| Altitude | ≤ 2000m |
| Frequency（Hz) | 50/60Hz |
| Charging Mode | Mode 3 |
| Connector Type | IEC62196-2 Type 2 |
| Dimension | W21.8 x 103.9 x 405mm（without cable） |
| Cable Width | 3×6mm² |
| Weight | 2.3kg |
| Certifications | IEC61851-1, IEC61851-22, IEC62196-2 |
| Warranty Protection | N/A |
| User Rating | N/A |
| Price | N/A |
Smart Features of Zhidatech - ZeedaWallbox B Series
- Remote Monitoring and OTA Upgrades: Real-time charger monitoring and over-the-air updates enhance functionality and minimize maintenance efforts.
- Plug and Charge Authentication: Ensures seamless user authentication and charging initiation for a hassle-free experience.
- Modular Design: Simplifies repairs and replacements, reducing downtime and increasing operational efficiency.
- High Ingress Protection: With IP65 certification, the charger is built to withstand extreme weather conditions, ensuring long-term durability.
- Connectivity Options: Offers compatibility with a customer app, WiFi, Bluetooth, and OCPP 1.6, enabling integration with advanced systems.
Product guides and documents of Zhidatech – ZeedaWallbox B Series
Zhidatech – ZeedaWallbox B Series Technical Specification Sheet
Advantages of the Zhidatech - ZeedaWallbox B Series
- High Power Output: Supports fast charging for fleet vehicles, optimizing charging time and operational efficiency.
- Compact and Portable: Its lightweight design enhances mobility and allows convenient use in various locations.
- Wide Operating Range: Performs reliably in extreme temperatures from -20°C to +50°C and altitudes up to 2000 meters.
- Safety Assurance: Equipped with residual current protection and CE-certified safety standards for secure operation.
Disadvantages of the Zhidatech - ZeedaWallbox B Series
- Limited Altitude Range: Performance may be affected in locations above 2000 meters.
- Specific Operating Conditions: Requires a stable 230V power supply, limiting compatibility in regions with different electrical systems.
- Optional Features: Certain features like OCPP 1.6 are optional, which might require additional costs for activation.
- Cable Not Included: Dimensions provided exclude the cable, which may require separate consideration during installation.
