Wallbox Supernova 180

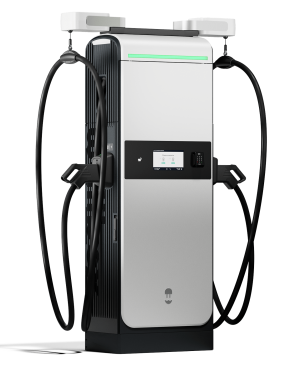

Wallbox - Supernova 180

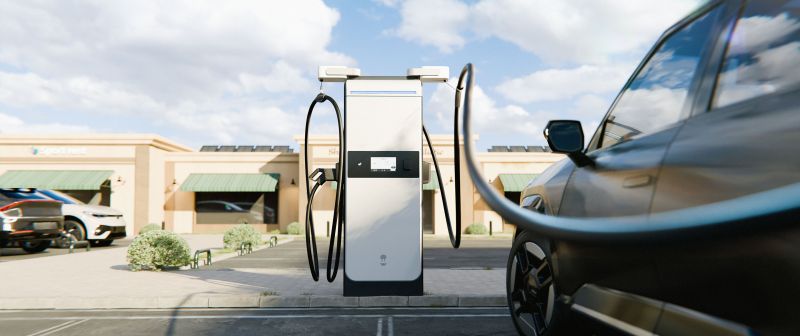

The Wallbox Supernova 180 is a state-of-the-art EV charging solution tailored for the US market. With a robust 180 kW power output, it delivers unmatched reliability and efficiency for rapid EV charging. Its sleek design and 10-inch color touchscreen ensure easy interaction, while advanced cable options, including CCS1 and NACS, offer compatibility with all electric vehicles.
Designed to support commercial operations and fleet electrification, the Wallbox Supernova 180 integrates with the GO TO-U platform for superior station management. Certified for top-tier safety and performance standards, it is an essential choice for high-traffic areas.
Charging Speed
The Wallbox Supernova 180 charges electric vehicles up to 80% in approximately 20-30 minutes, ensuring rapid and seamless operations in high-demand environments.
Technical Specifications
| SPECIFICATIONS | |
| Electrical | |
| Power Level |
|
| Output Power |
|
| Nominal Efficiency | 95% |
| Power Factor | >0.98 |
| THD | 5% |
| Standby Consumption | < 100 W |
| Output Voltage | 150-1000 VDC |
| Max Output Current |
|
| Supply Input Voltage Range | 480 VAC ± 10% (L-L), 277 VAC ± 10% (L-PE), 60 Hz; 3P+PE |
| Max Supply Input Current |
|
| Split Charge | Simultaneous charge of 2 outputs |
| Environmental | |
| Environmental Ratings | Environmental Ratings IP54, IK10 (charger) & IK08 (screen), 6560 ft (2000 m) altitude |
| Operating Temperature | -30°C to 50°C (-22° F to 122° F) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Humidity | 5% to 95% Non-condensing |
| General | |
| DC Connectors | CCS1+CCS1 |
| Charging Protocol | ISO15118, DIN SPEC 70121, SAEJ1772 |
| Cable Length | 5 m (16.4 ft) |
| Cable Management | Retracting the cable to its initial position |
| Supernova Footprint | 2000x453x868 mm (78. 7x17.8x34.2 In) |
| Maximum Outer Dimensions | 2000x453x714 mm (78. 7x17.8x28.1 In) |
| Weight / Weight with packaging |
|
| Charging Compliance |
|
| Safety Compliance | UL 2202, UL 2231, CSA C22.2 No. 346:22, |
| Connectivity | Ethernet, 4G/LTE, WiFi |
| Backend Communication Protocol | OCPP 1.6J, OCPP 2.0 (Hardware Ready), Plug & Charge (Hardware Ready) |
| Commissioning Interface | Local (via Ethernet and without extra software) and remote webmanager |
| Ad-Hoc Payment | Credit Card Reader (various options available) |
| Warranty Protection | 2-Years |
| User Rating | N/A |
| Price | N/A |
Smart Features of Wallbox - Supernova 180
- High Power Output Options: Offers flexible charging speeds with 60kW, 120kW, and 180kW configurations to meet diverse energy needs effectively.
- Advanced Compatibility: Equipped with CCS1 and NACS connectors, ensuring compatibility with all electric vehicles across the US market.
- Intuitive Touchscreen Display: A 10-inch color touchscreen provides an interactive and user-friendly interface for streamlined operation.
- GO TO-U Integration: Seamlessly integrates with the GO TO-U platform, allowing efficient station management and enhanced user engagement.
- Robust Build Quality: Certified with UL, FCC, and NEMA standards, offering durability, safety, and reliable performance even in harsh conditions.
Product guides and documents of Wallbox - Supernova 180
Wallbox - Supernova 180 Technical Specification Sheet
Advantages of the Wallbox - Supernova 180
- Rapid Charging Capability: Delivers up to 180kW, enabling quick turnaround times for EV drivers in just 20-30 minutes.
- Versatile Applications: Suitable for commercial, fleet, and public charging needs, ensuring adaptability across various operational settings.
- Seamless Management: GO TO-U integration simplifies station monitoring and enhances overall efficiency for businesses.
- Durable and Safe Design: Built with IP54 and IK10 certifications, ensuring weather resistance and robust physical protection for outdoor use.
- High Charging Efficiency: Adjustable charging intensity adapts to available power, optimizing energy usage.
Disadvantages of the Wallbox - Supernova 180
- Higher Initial Cost: The premium features and advanced capabilities may lead to a higher upfront investment compared to standard chargers.
- Complex Installation: Professional installation is required due to the high power output and advanced features.
- Space Requirements: Its larger dimensions may pose challenges for locations with limited installation space.
- Limited Portability: Designed for fixed installation, making it unsuitable for mobile or temporary charging needs.
