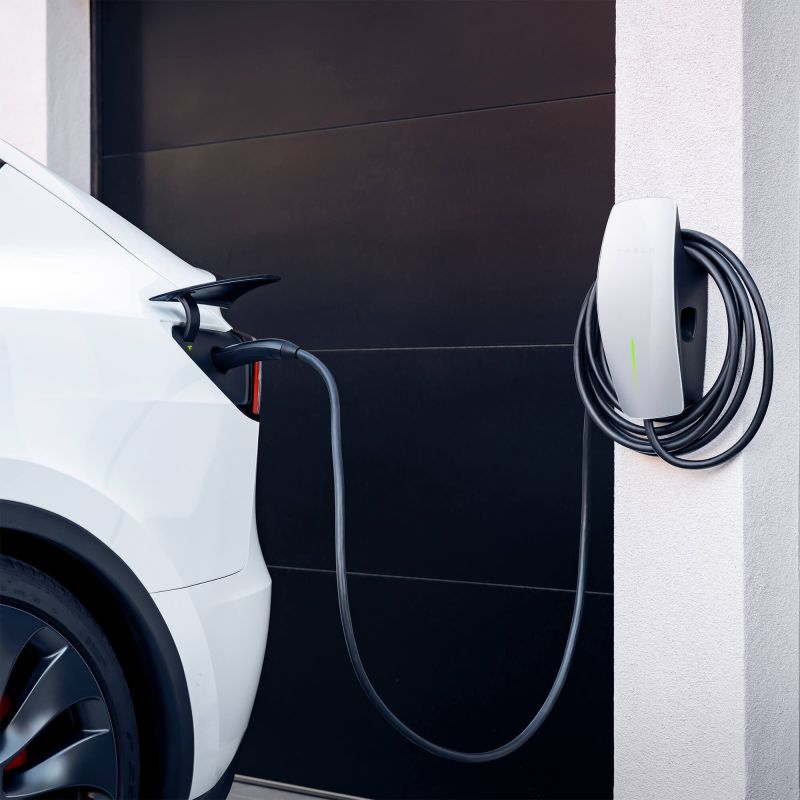

Tesla Wall Connector
Tesla - Wall Connector
The Tesla Wall Connector offers a seamless and efficient charging solution tailored for residential, commercial, and hospitality environments. Designed to deliver optimal convenience, the Wall Connector provides fast charging speeds with a durable, versatile design suitable for both indoor and outdoor installations.
Equipped with advanced features such as Wi-Fi connectivity, auto-sensing technology, and Tesla app integration, the Wall Connector ensures effortless management of charging schedules and usage. Its 24-foot cable length enhances accessibility, while Power Management features help minimize installation costs. Backed by a four-year warranty, the Tesla Wall Connector is engineered to combine reliability with cutting-edge performance.
Charging Speed
The Tesla Wall Connector adds up to 44 miles of range per hour at an impressive 11.5 kW/48 amp output, ensuring faster charging times for EVs.
Technical Specifications
| SPECIFICATIONS | |
| Voltage and Wiring | Nominal 200-240 V AC single-phase |
| Current Output Range | 12 – 48 amps |
| Terminal Blocks | 12-4 AWG (3.5 - 25 mm2), copper only |
| Supported Conduit Sizing | ¾ in (21 mm) default, 1 in (27 mm) optional |
| Grounding Scheme | TN/TT |
| Frequency | 50/60 Hz |
| Cable Length | 7.3 m |
| Wall Connector Dimensions |
|
| Wire Box Bracket Dimensions |
|
| Weight (including wirebox) | 10 lb. (4.5 kg) |
| Operating Temperature | -22˚F to 122˚F (-30˚C to 50˚C) |
| Storage Temperature | -40˚F to 185˚F (-40˚C to 85˚C) |
| Enclosure Rating |
|
| Ventilation | Not required |
| Means of Disconnect | External branch circuit breaker |
| Ground Fault Circuit Interrupter | Integrated CCID20 |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Agency Approvals | cULus - E351001 |
| Warranty Protection | 4-year |
| User Rating | N/A |
| Price | $420 |
Smart Features of Tesla - Wall Connector
- High Charging Efficiency: Capable of adding up to 44 miles of range per hour with an 11.5 kW output for reliable and fast charging.
- Tesla App Integration: Manage charging schedules, monitor energy usage, and access diagnostics remotely through the Tesla app.
- Wi-Fi Connectivity: Enables over-the-air updates, remote diagnostics, and secure access controls for enhanced convenience and reliability.
- Versatile Design: The Wall Connector’s durable construction supports indoor and outdoor installations, adapting to various environments effortlessly.
- Power Management Features: Minimizes installation costs while optimizing charging speeds for multiple users at shared properties.
Product guides and documents of Tesla - Wall Connector
Tesla - Wall Connector Product Manual Sheet Sheet
Tesla - Wall Connector Technical Specification Sheet
Advantages of the Tesla - Wall Connector
- Enhanced Charging Efficiency: Delivers high-speed charging with a 48-amp output, ensuring optimal vehicle readiness in less time.
- User-Friendly Management: Tesla app integration simplifies scheduling, usage tracking, and diagnostics, improving the overall charging experience.
- Future-Proof Updates: Over-the-air software updates ensure the charger remains up-to-date with Tesla’s latest advancements.
- Durable and Versatile: The Wall Connector’s robust design supports both indoor and outdoor use, providing flexibility across installation settings.
- Extended Cable Reach: A 24-foot cable ensures accessibility, even in challenging parking configurations.
Disadvantages of the Tesla - Wall Connector
- Limited Compatibility: Designed specifically for Tesla vehicles, restricting use for non-Tesla EVs without an adapter.
- Installation Costs: Professional installation may incur additional costs, depending on the setup and location.
- Wi-Fi Dependence: Some features, such as updates and remote access, require a stable internet connection.
- High Initial Cost: The Wall Connector may be a significant upfront investment compared to standard chargers.
- Residential Warranty Limit: The four-year warranty applies to residential use only, limiting coverage for commercial applications.
