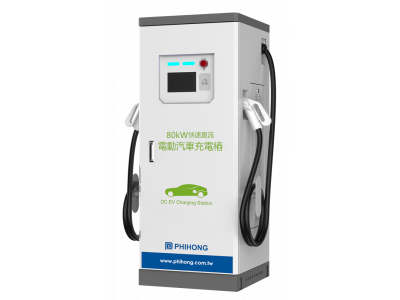

Phihong Technology DB 80kw/120kw/180kw DC Charger
Phihong Technology - DB 80kw/120kw/180kw DC Charger
Phihong Technology introduces the DB Series 80kW/120kW/180kW Single Gun/Double Gun Column Charging Pile, designed to provide high-efficiency charging solutions for electric vehicles. This innovative charger delivers an impressive 500A output and supports simultaneous DC and AC charging (with AC available from Q2 2021). The charger is compatible with multiple standards, including CCS, CHAdeMO, and GB/T, ensuring widespread accessibility. With a 7-inch LCD screen and user-friendly interface, this charger is built for ease of use, whether operating in a networked or standalone mode.
Engineered for durability, the DB Series charging pile boasts an efficiency rate exceeding 94% and a power factor greater than 0.99. The unit’s IP55 rating and optional cable management accessories ensure reliable performance in various environments. Phihong Technology provides customizable options to meet specific charging needs, making this charging pile a versatile and robust solution for modern EV infrastructure..
Charging Speed
The DB Series charging pile offers a powerful 500A output, allowing for rapid charging of electric vehicles. This enables faster turnaround times, minimizing vehicle downtime for efficient operations.
Technical Specifications
| AC Input | |
| Input Rating | 380Vac ±15% |
| AC Input Connection | 3P+N+PE |
| Max. Input Current (A) | 150A/220A/340A |
| Frequency (Hz) | 47Hz ~ 63Hz |
| Power factor | > 0.99 @ full load |
| Efficiency | ≧ 94.5% |
| DC Output | |
| Output Voltage Range | 200V ~ 750V |
| Max. Output Current | 106A / 160A / 240A |
| Max. Output Power (kW) | 80kW / 120kW / 180kW |
| Voltage Accuracy (%) | ±2% |
| Current Accuracy (%) | ±2% |
| User Interface & Control | |
| Display | 7" LCD |
| Push Buttons | Emergency stop button |
| User Authentication | RFID: support ISO 14443A/B |
| Communication | |
| External | Ethernet/3G/4G/Wi-Fi |
| Internal | CAN bus/RS485 |
| Environmental | |
| Operating Temperature (°C) | -20˚C~50˚C, power derating from 50˚C and above |
| Humidity (%) | 5%~95% RH, non-condensing |
| Altitude (m) | ≦ 2000m |
| IP Level | IP54 |
| Cooling method | Fan cooling |
| Mechanical | |
| Dimension (WxDxH mm) | 650x645x1650mm |
| Weight (kg) | < 300kg |
| The Cable Length (m) | 5m/7.5m |
| Protection | |
| Input Protection | OVP, OCP, OPP, OTP, UVP, RCD, SPD |
| Output Protection | OCP, OVP, UVP, OTP, IMD |
| Mechanical | |
| Certificate |
|
| Safety | CNS15511-3 / CNS15511-23 / CNS15511-24 |
| Charging Interface | GB/T20234-2015 |
| Warranty Protection | N/A |
| User Rating | N/A |
| Price | N/A |
Smart Features of Phihong Technology - DB 80kw/120kw/180kw DC Charger
- 500A Output: Ensures rapid and efficient charging, providing high-speed energy delivery to electric vehicles.
- Simultaneous DC & AC Charging: Supports dual charging, allowing for more flexible and faster energy distribution (AC charging available Q2 2021).
- Multi-standard Compatibility: Compatible with CCS, CHAdeMO, and GB/T standards, ensuring a broad range of electric vehicles can be charged.
- User Authentication: Enhances security with user authentication for controlled access to charging stations.
- Smart Charging & Load Balancing: Optimizes power distribution, preventing overloads and ensuring stable, efficient energy use across multiple units.
- Efficient Operation: Boasts an efficiency of over 94% and a power factor of 0.99, reducing energy waste and improving cost-effectiveness.
Product guides and documents of Phihong Technology - DB 80kw/120kw/180kw DC Charger
Phihong Technology DB 80kw/120kw/180kw DC Charger Technical Specification Sheet
Advantages of the Phihong Technology - DB 80kw/120kw/180kw DC Charger
- High Output Power: The 500A output delivers rapid and reliable charging, reducing waiting times for electric vehicle users.
- Flexible Charging Options: Dual DC and upcoming AC charging capabilities provide more convenience for users, allowing various vehicle types to charge simultaneously.
- Wide Compatibility: The charger supports multiple standards, ensuring it is suitable for a wide range of electric vehicles, regardless of brand or type.
- Customizable Features: Phihong Technology offers customization to meet specific needs, enabling businesses to tailor the solution to their requirements.
- Durability and Weather Resistance: The IP55 rating and robust design ensure the charger performs effectively in various weather conditions and environments.
- User-Friendly Interface: The 7-inch LCD screen with intuitive controls makes the charger easy to operate for both technicians and users.
Disadvantages of the Phihong Technology - DB 80kw/120kw/180kw DC Charger
- Limited AC Charging Availability: AC charging will only be available in Q2 2021, limiting the full functionality of the charger until then.
- RFID and Screen Vulnerability: The screen and RFID module are not protected by the IK10/NEMA 3R rating, which could expose them to damage in harsher environments.
- Customization May Increase Costs: While customizable options are available, they may come at an additional cost for those seeking a tailored solution.
- Higher Initial Investment: The advanced features and high power output may result in a higher upfront investment compared to lower-output chargers.
- Installation Requirements: Professional installation is required for optimal performance, which could add to setup time and costs.
