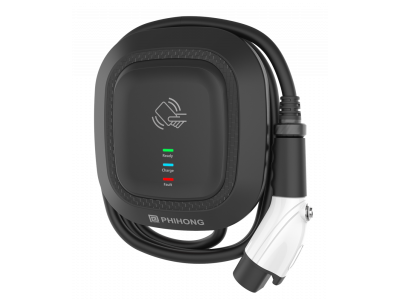

Phihong Technology 32A EV AC Charger
Phihong Technology - 32A EV AC Charger
Phihong Technology's AW Series 32A EV AC Charger is engineered for both residential and commercial electric vehicle (EV) charging. Featuring a sleek, ergonomic design, this charger offers reliable and efficient performance, capable of simultaneously handling two DC charging sessions. The charger is IP55 rated, ensuring suitability for both indoor and outdoor applications, providing users with versatility in placement.
Equipped with advanced features like an optional RFID card reader for user identification, the 32A EV AC Charger also supports wired and wireless connectivity for easy back-office management. With input ranging from 200V to 240V and compatibility with SAE J1772 (Type 1) or IEC 62196 (Type 2), this charger meets diverse needs while ensuring future-proof firmware updates.
Charging Speed
The AW Series 32A EV AC Charger offers impressive charging speed, ensuring rapid power delivery for electric vehicles, making it an efficient solution for both residential and commercial users.
Technical Specifications
| AC Input | |
| AC Input Connection |
|
| Input Current | 32A |
| Frequency | 50Hz/60Hz |
| AC Output | |
| Output Current | 32A |
| User Interface & Control | |
| User Authentication | RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa™, Mifare) |
| Communication | |
| External | LAN (optional) + 4G (optional) or Wi-Fi (optional) |
| Internal | OCPP 1.6 JSON |
| Environmental | |
| Operating Temperature | -30˚C~50˚C |
| Humidity | Max. 95% RH |
| Altitude | ≦ 2000m |
| IP Level |
|
| Cooling Method | Natural Cooling |
| Mechanical | |
| Dimension (W×D×H) | 260 x 100 x 280 mm |
| Weight | ≦ 4Kg (With Plug) |
| Cable Length | 5m |
| Protection | |
| RCD/CCID |
|
| Input Side | UVP, OVP, Surge protection, Ground fault |
| Output Side | OCP, Control pilot fault, Residual current protection |
| Internal | OTP, Relay welding detection, CCID self-test, MCU function fault detection |
| Regulation | |
| Certificate |
|
| Safety |
|
| Wireless Certificate |
|
| Charging Interface |
|
| Warranty Protection | N/A |
| User Rating | N/A |
| Price | N/A |
Smart Features of Phihong Technology - 32A EV AC Charger
- Simultaneous 2 DC Charging: Capable of charging two vehicles at once, providing enhanced convenience and efficiency.
- Wired/Wireless Connectivity: Offers flexibility in back-office management via both wired and wireless connections.
- RFID Card Reader Option: Enables user identification and management for secure access and charging control.
- IP55 Rating: Ideal for both indoor and outdoor installation, offering durability against dust and water.
- Versatile Charging Interface: Supports both SAE J1772 (Type 1) and IEC 62196 (Type 2) connectors for compatibility with various EV models.
Product guides and documents of Phihong Technology - 32A EV AC Charger
Phihong Technology 32A EV AC Charger Technical Specification Sheet
Advantages of the Phihong Technology - 32A EV AC Charger
- Efficient Dual Charging: Simultaneously charges two electric vehicles, saving time and increasing convenience.
- Flexible Installation: Suitable for both residential and commercial use, providing versatility in different environments.
- Future-Proof Design: With firmware updates through remote connections, the charger stays current with evolving technologies.
- Durability: The IP55 rating makes the charger resistant to dust and water, ensuring long-lasting performance in various conditions.
- User-Friendly Management: The optional RFID card reader enhances security and simplifies user identification for easy management.
- Customizable Design: The charger’s ergonomic and stylish design can be tailored to meet aesthetic and functional needs.
Disadvantages of the Phihong Technology - 32A EV AC Charger
- Limited Charging Interface Compatibility: While it supports SAE J1772 and IEC 62196, compatibility with other EV models may be limited.
- Requires External Power Source: The charger requires a steady 200V to 240V power input, limiting usage in areas without this power supply.
- Relatively Higher Initial Cost: The advanced features and design may result in a higher upfront investment.
- May Require Professional Installation: Installation may require expert assistance to ensure optimal setup, increasing the overall cost.
- Optional Features Add to Cost: Additional features such as RFID and wireless management may increase the overall price.
- Limited Availability of Parts: Availability of replacement parts and accessories may vary depending on the region.
