Joint EVC D2 EU 64A With Dual T2 Socket
Joint - EVC D2 EU 64A With Dual T2 Socket

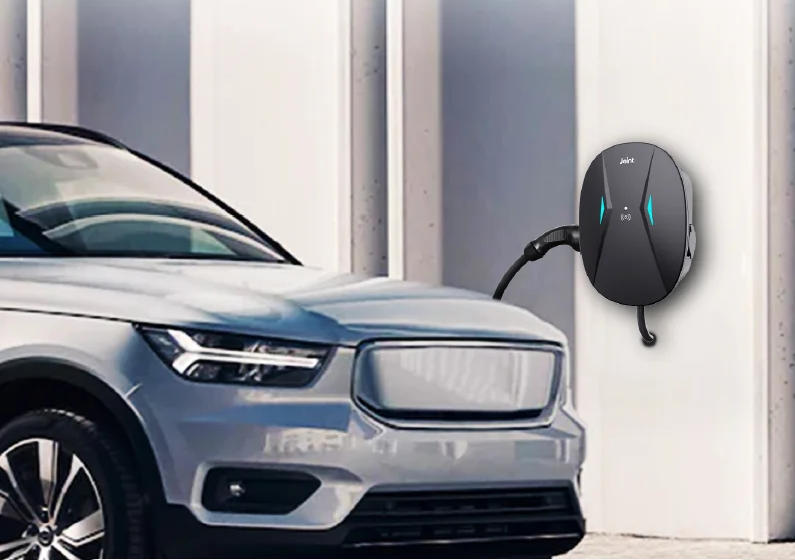

The EVC D2 is a smart AC EV charger designed for both commercial and home use. It supports single-phase and three-phase connections, offering flexibility in installation. It complies with safety standards and features a T2 socket for standard charging in Europe. With up to 44 kW of output power, it enables relatively fast charging. While the webpage doesn't mention the price, it highlights the charger's design and functionality.
Charging Speed
While the EVC D2 EU boasts a maximum output of 44 kW, enabling relatively fast charging, the actual charging speed experienced will ultimately depend on the capabilities of the specific electric vehicle being charged.
Technical Specifications
| Suitable for | commercial and home use. |
| Certification | |
| Input Voltage |
|
| Frequency | 50-60Hz |
| Output Rating | 2 x 7kW, 2 x 11kW, and 2 x 22kW. |
| Maximum Output Current | 64A |
| Maximum Output Power | 2 x 7kW, 2 x 11kW, 2 x 22kW |
| Charging Interface | IEC 62196-2 Compliant, T2 Socket |
| Connectivity | Wi-Fi & Bluetooth + APP control. OCPP 1.6 JSON. |
| Operating Temp. | -30°C ~ 50°C |
| Product Dimensions | 380 X 280 X 156mm |
| Warranty Protection | 2 Years limited warranty |
| User Rating | N/A |
| Price | N/A |
Smart Features of Joint - EVC D2 EU 64A With Dual T2 Socket
- CT Clamp for Smart Charging: Provides dynamic load balancing, optimizing power distribution and preventing circuit overload.
- Real-time Monitoring: Allows users to track charging status, energy consumption, and other vital data remotely.
- OCPP1.6J Compliance: Facilitates connection to over 50 EV platforms worldwide, ensuring wider compatibility and network access.
- Wi-Fi/Bluetooth Connectivity: Enables remote management of EV charging activities, offering convenience and control.
Product guides and documents of Joint - EVC D2 EU 64A With Dual T2 Socket
Joint EVC D2 EU 64A With Dual T2 Socket Technical Specification Sheet
Advantages of the Joint - EVC D2 EU 64A With Dual T2 Socket
- Safety: Backed by CE, FCC, and ETL certifications, providing peace of mind with industry-standard safety measures.
- Efficiency: Enables dynamic load balancing, which can help optimize power distribution and reduce charging times.
- Compatibility: Supports various electric vehicle platforms, potentially eliminating the need for additional adapters.
- Versatility: Compatible with both single-phase and three-phase electrical connections, offering flexibility in installation.
Disadvantages of the Joint - EVC D2 EU 64A With Dual T2 Socket
- Limited portability: AC chargers are typically stationary units that require installation at a specific location, unlike portable chargers that can be plugged into a regular outlet.
- Potential electrical installation costs: Depending on the charger's requirements and your existing electrical setup, additional electrical work might be necessary for installation, which can incur costs.
- Dependence on home electrical system: The charging speed and functionality of an AC charger can be limited by the capacity of your home's electrical system.
