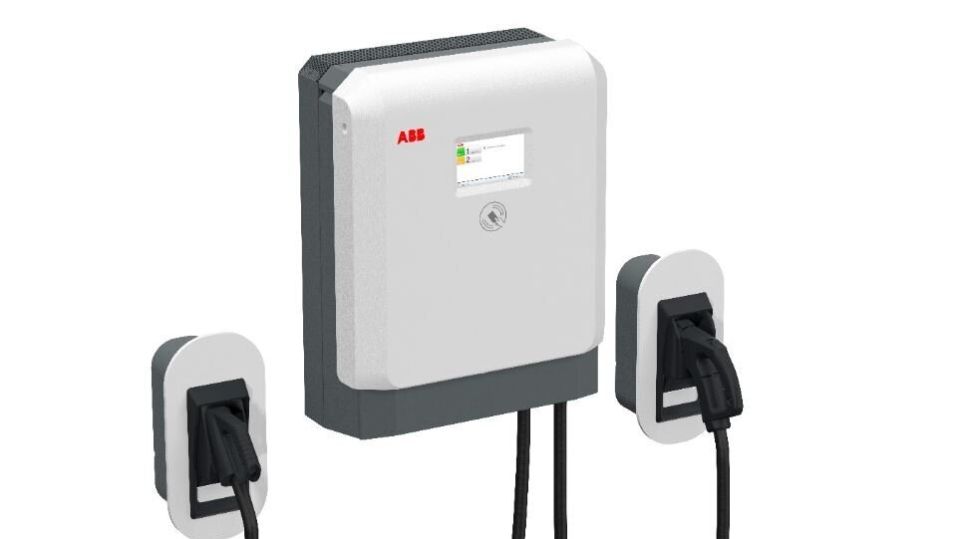

InCharge Energy ABB Terra 24 Wallbox
InCharge Energy - ABB Terra 24 Wallbox
Elevate your charging experience with the ABB Terra 24 Wallbox from InCharge Energy. This UL certified 24 kW DC fast charger is meticulously designed for commercial parking, auto dealerships, workplaces, and fleets. With a compact build and high-voltage architecture, the Terra DC Wallbox accommodates sites with limited power service, offering versatile 920 VDC charging capability for all EV models.Unveil the future of efficient charging solutions with InCharge Energy's ABB Terra 24 Wallbox, empowering businesses to embrace sustainable mobility effortlessly.
Charging Speed
InCharge Energy's ABB Terra 24 Wallbox delivers rapid charging, boasting a robust 24 kW DC output. Experience accelerated charging times without compromise, ensuring your EV fleet stays powered and ready for the road.
Technical Specifications
| Configuration | |
| Voltage | 1 Phase 208-240 ; 3 Phase 480V |
| AC Input Power Connection | 1 Phase L1, L2, GND; 3 Phase L1, L2, L3, N, GND |
| Frequency | 60H |
| Recommended breaker | 1 Phase125A ; 3 Phase 40A |
| THD - Current | IEEE 519 Compliant; 5% |
| Power factor | >0.96 |
| Output Parameters | |
| Voltage | 150 to 920 Vdc (CCS1), 150 - 500 Vdc (CHAdeMO) |
| Current - Max | 60A |
| Power - Max | 1 Phase19.5kW @ 208V; 1 Phase 22.5kW @ 240; 3 Phase 24 kW |
| Controls & Interface | |
| Charging Connectors | CCS1, CCS2, CHAdeMO |
| HMI | 7” TFT LCD Display |
| Communication | OCPP 1.6J |
| Network Connection | GSM / 4G modem10/100 Base-T Ethernet |
| RFID | ISO/IEC14443A/B, ISO/IEC15693, NFC, Mifare, Calypso |
| Environment | |
| Temperature - Operating | -35 °C to +45 °C * |
| Temperature - Storage | -10 °C to +70 °C / 14 °F to +158 °F |
| Humidity | 5 - 95 |
| Altitude - Operating | 8200ft (2500M) |
| Protection - Intrusion | IP54, NEMA 3S; indoor and outdoor |
| Cable Length | 23ft (7m) |
| Safety and EMI | UL 2202, NEC Article 625, EN 61851, EN 62196 |
| Dimensions | (D x W x H): 11.8 in” x 23” (W) x 30.3” (H) / 300mm X 584mm X 770mm |
| Weight | 60kg / 132 lbs |
| Warranty Protection | N/A |
| User Rating | N/A |
| Price | N/A |
Smart Features of InCharge Energy - ABB Terra 24 Wallbox
- Dynamic Voltage Range: Offering a flexible DC output voltage range from 150 to 920 VDC, catering to diverse EV models.
- Versatile Outlet Options: Choose from single or dual outlets supporting CCS-1 and CHAdeMO standards for seamless compatibility.
- Intuitive Interface: Navigate effortlessly with a daylight readable 7” full-color touchscreen display, ensuring user-friendly interaction.
- Enhanced Security: Incorporating an RFID reader for secure access control, prioritizing safety and convenience.
- Smart Connectivity: Embrace advanced features like OCPP 1.6 and Smart Charging Profiles for optimized charging management.
- Remote Management: Enjoy the convenience of remote services and updates, ensuring your charging infrastructure remains cutting-edge.
Product guides and documents of InCharge Energy - ABB Terra 24 Wallbox
InCharge Energy ABB Terra 24 Wallbox Technical Specification Sheet
InCharge Energy ABB Terra 24 Wallbox Single-phase Installation Manual
InCharge Energy ABB Terra 24 Wallbox Three-phase Installation Manual
Advantages of the InCharge Energy - ABB Terra 24 Wallbox
- Efficiency: Optimize charging operations with rapid 24 kW DC output, minimizing downtime and maximizing productivity.
- Versatility: Accommodate various EV models with a wide DC output voltage range and dual outlet options, ensuring comprehensive compatibility.
- User-Friendly: Streamline user experience with an intuitive touchscreen interface and RFID reader for seamless access control.
- Reliability: Rely on robust construction and weatherproof enclosure for dependable performance in indoor and outdoor settings.
- Scalability: Embrace future-proof technology with capabilities for remote services and updates, ensuring longevity and adaptability.
- Safety: Prioritize safety with UL certification and advanced features, fostering confidence in every charging session.
Disadvantages of the InCharge Energy - ABB Terra 24 Wallbox
- Installation Complexity: Integration into existing infrastructure may require professional expertise, potentially increasing setup costs.
- Limited Availability: Depending on geographical location, accessibility to support and maintenance services may vary.
- Initial Investment: While offering long-term savings, the upfront cost of the ABB Terra 24 Wallbox may pose a financial barrier for some businesses.
- Compatibility Challenges: Ensuring compatibility with specific EV models may require additional research and consideration, potentially causing delays in deployment.
