Electric Avenue Watti Pro Lite 48A

Electric Avenue - Watti Pro Lite 48A Charging Station

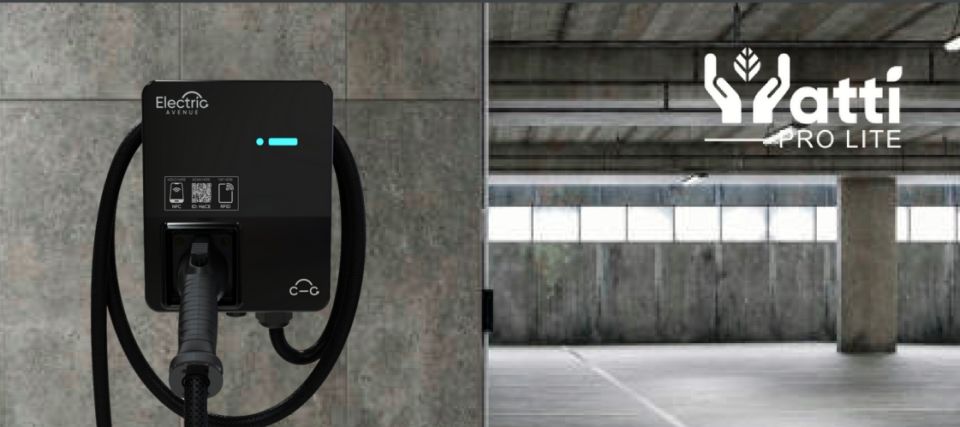

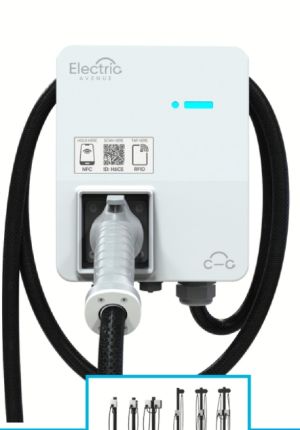

Introducing the "Watti Pro Lite 48A" by Electric Avenue – an innovative, wall-mount AC charger designed for at-home fleet service charging, workplaces, and multi-unit residential buildings. This 48A-11.5kW charger offers versatility with hardware/software adjustable settings (16A/32A/40A/48A) and boasts a sleek design with optional cable management pedestal. Ideal for seamless integration with Enterprise Software, enabling effective monetization, user management, and insightful reporting in real-time.

Charging Speed

Experience rapid charging with the Watti Pro Lite 48A by Electric Avenue. Delivering an impressive 11.5kW output at 240V (10kW at 208V), this charger ensures swift and efficient charging for electric vehicles, making it an ideal choice for businesses and residential settings.

Technical Specifications

AC Input
Input Rating	Single-phase: 208/240V
AC Input Connection	Ll/L2/GND
Input Current	48A
Frequency	60Hz
AC Output
Output Current	Hardware/Software Adjustable: 16A/32A/40A/48A
Output Power	11.5kW at 240V/ 10kW at 208V
Output Interface	SAE -J1772 AC Charging Connector
'Communication
Network Connection	WiFi/LAN
Internet Function	10M / 100M Base-T
Wi-Fi Function	802.11 b/g/n
Charge Protocol	OCPP 1.6 JSON
Environmental
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Relative Humidity	Up to 95% Non-Condensing
Storage Humidity	to
Altitude	≤2000m (≤6561ft)
Mechanical
Charger Dimensions (W x H x D)	218mm x 218mm x 94mm (8.6in x 8.6in x 3.7in)
Weight	7kg (15.4lbs)
Cable Length	Optional 5.5m (18ft) or 7.6m (25ft)
Display	LED Indicator light (Red, Green, Blue)
Safety
Input Protection	UVP,OVP, RCD (CCID20), SPD, Ground Fault Protection
Output Protection	OCP, OTP, Control Pilot Fault Protection
Protocol	OTP, Relay welding detection, CCID self-test, MCIJ function fault detection
Warranty	2-year warranty
User Rating	N/A
Price	N/A

Smart Features of Electric Avenue - Watti Pro Lite 48A

Adjustable Charging: Tailor charging preferences with hardware/software adjustable settings (16A/32A/40A/48A).

LED Network Indicator: Stay informed with LED lights indicating network connection and charge status.

User Authorization: Utilize RFID, QR Code, and NFC for secure user authorization and payment collection.

Connectivity Options: Benefit from WIFI/LAN connectivity and OCPP 1.6 compatibility for seamless integration.

Safety First: Built-in PEN fault protection eliminates the need for an earthing rod, ensuring user safety.

Warranty Assurance: Enjoy peace of mind with a cETLus Listed charger backed by a reliable 3-year warranty.

Product guides and documents of Electric Avenue - Watti Pro Lite 48A

Advantages of the Electric Avenue - Watti Pro Lite 48A

Versatile Charging: Hardware adjustable settings cater to varying charging needs.

User-Friendly: Intuitive LED indicators and user authorization methods enhance user experience.

Connectivity Features: WIFI/LAN connectivity and OCPP 1.6 compatibility provide seamless integration.

Safety Assured: Built-in PEN fault protection ensures enhanced safety measures.

Reliable Warranty: The 3-year warranty offers confidence in the product's durability.

Monetization Capability: Pair with Enterprise Software for effective charger monetization and user management.

Disadvantages of the Electric Avenue - Watti Pro Lite 48A

Cable Length Limitation: The 5.5m cable length may pose challenges in certain installation scenarios.

Limited RFID Cards: Including only 2 RFID cards might be insufficient for larger user groups.

Single Phase Operation: Limited to single-phase operation, potentially restricting charging options.

Specific Enterprise Integration: Complete advantage of monetization features requires integration with Enterprise Software.

No Earthing Rod Required: While advantageous, built-in PEN fault protection may lead to reliance on specific electrical setups.

Restricted Charging Speeds: Depending on the chosen setting, charging speeds may vary, impacting efficiency.
