EFACEC USA INC HV 350 G2

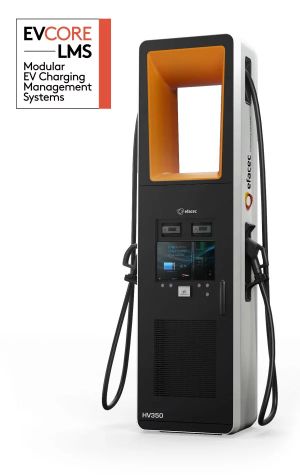

EFACEC USA INC - HV 350 G2 Charging Station

The HV 350 G2 is a modular system that can be configured with one or two charging dispensers. Each dispenser is equipped with a CCS (Combined Charging System) connector, which is compatible with most EVs on the market. The station also has an optional CHAdeMO connector, which is compatible with some Asian EVs.

Charging Speed

Up to 350 kW of power. This is incredibly fast and can charge most EVs from 10% to 80% in as little as 15 minutes.

Technical Specifications

General
Model	HV 350 G2
Connector types	CCS (standard), CHAdeMO (optional)
Dimensions (single dispenser)	78.7" x 70.9" x 82.7" (1998 x 1799 x 2102 mm)
Weight (single dispenser)	Approximately 2,200 lbs (1,000 kg)
Electrical
Input voltage	380/415/480 VAC, 3-phase, 50/60 Hz
Maximum input current	630 A
Short-circuit current rating	200 kA
Power output	Up to 350 kW
Voltage output	Up to 920 V
Current output	Up to 500 A
Connectivity	Ethernet, Wi-Fi, cellular (optional)
Operating temperature	-40°F to 122°F (-40°C to 50°C)
Warranty	3-5 years for parts and labor.
Overall User Rating	N/A
Price	Single dispenser base unit: Expect a range of $125,000 to $150,000. Dual dispenser setup: This configuration could cost approximately $175,000 to $200,000 or even higher depending on additional features.

Smart Features of EFACEC USA INC - HV 350 G2

Dynamic Load Management: Explain how the built-in load management system ensures smooth operation without overloading the local power grid. This assures customers of reliable charging even during peak hours.

Real-Time Data and Monitoring: Showcase the DC meters that provide real-time information about the power being delivered to the EV. This transparency allows customers to monitor their charging progress and optimize their charging experience.

Advanced Connectivity and Communication: Emphasize the station's ISO 15118 compliance, enabling communication with the EV and optimizing the charging process for safety and efficiency.

Future-Proof Technology: Highlight the capability of receiving remote, over-the-air software updates. This assures customers that their charging station will always be up-to-date with the latest features and security patches, protecting their investment.

Product guides and documents of EFACEC USA INC - HV 350 G2

EFACEC USA INC HV 350 G2 Data Sheet

Advantages of the EFACEC USA INC - HV 350 G2

Mobile App Integration: Mention the availability of a mobile app that allows customers to remotely monitor charging sessions, track energy consumption, and even make payments.

Payment Flexibility: Discuss various payment options like contactless payment or integration with existing charging networks for added convenience.

Disadvantages of the EFACEC USA INC - HV 350 G2

High upfront cost: The HV 350 G2's advanced technology and powerful capabilities come at a premium price tag, which might be a deterrent for budget-conscious buyers.

Installation complexity: Due to its high power output, installing the HV 350 G2 might require specific electrical infrastructure upgrades, adding to the initial investment.

Limited compatibility: While compatible with most CCS-enabled EVs, the optional CHAdeMO connector might not cater to all EV models. Consider the dominant EV types in your target audience to assess compatibility.

Maintenance requirements: Regular maintenance might be necessary to ensure optimal performance and system health, especially for high-powered charging stations like the HV 350 G2.
