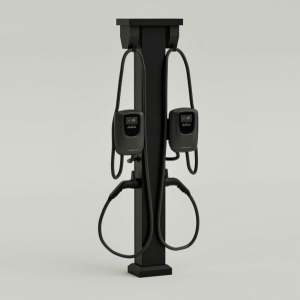

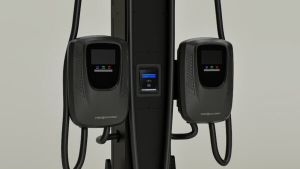

Cyber Switching Commercial Commercial Dual 80A EV Charging Station
Cyber Switching - Commercial Commercial Dual 80A EV Charging Station
The Cyber Switching Commercial Dual 80A EV Charging Station offers robust dual-port Level 2 charging for commercial applications, delivering high-capacity output ideal for fleet operations, public parking, and multi-unit dwellings. Cyber Switching’s cable-management system and rugged construction ensure deployment in outdoor or indoor settings with professional appearance and reliability.
Designed for seamless integration into business environments, the charger includes smart access controls, payment capability, and networked monitoring to manage usage, revenue, and uptime with confidence. Cyber Switching builds the station on decades of power-management experience to offer both performance and operational ease.
Charging Speed
The Cyber Switching Dual 80A station supplies up to 80A per port (~19.2 kW), enabling up to 67 miles of range per hour of charging under optimal conditions.
Technical Specifications
| General | |
| Voltage | 208–240 VAC |
| Power / Amperage Levels | 3.5 kW / 16A, 7 kW / 32A, 10 kW / 40A, 11.5 kW / 48A, 13.5 kW / 56A, 15.4 kW / 64A, 19 kW / 80A (Page 3) |
| Frequency | 50–60 Hz |
| Charging Interface | SAE J1772 Type 1 |
| Cable Length | 18 ft |
| Network Options | LAN, WiFi, 4G |
| Communication Protocol | OCPP 1.6J |
| User Authentication | RFID |
| Screen Display | 4.3" LCD screen |
| Safety Compliance | UL2594, UL2231-1-2 |
| Built-In Protection | UVP, OVP, RCD, SPD, OCP, OTP, CPFP, Ground Fault Protection |
| CCID Rating | CCID20 |
| Operating Temperature | −22°F to 122°F |
| Enclosure Rating | Type 3 enclosure, IK08 impact rating |
| Indoor/Outdoor Use | Supported |
| Water & Dust Resistance | Yes – rated for outdoor installation |
| Weight | 20 lbs |

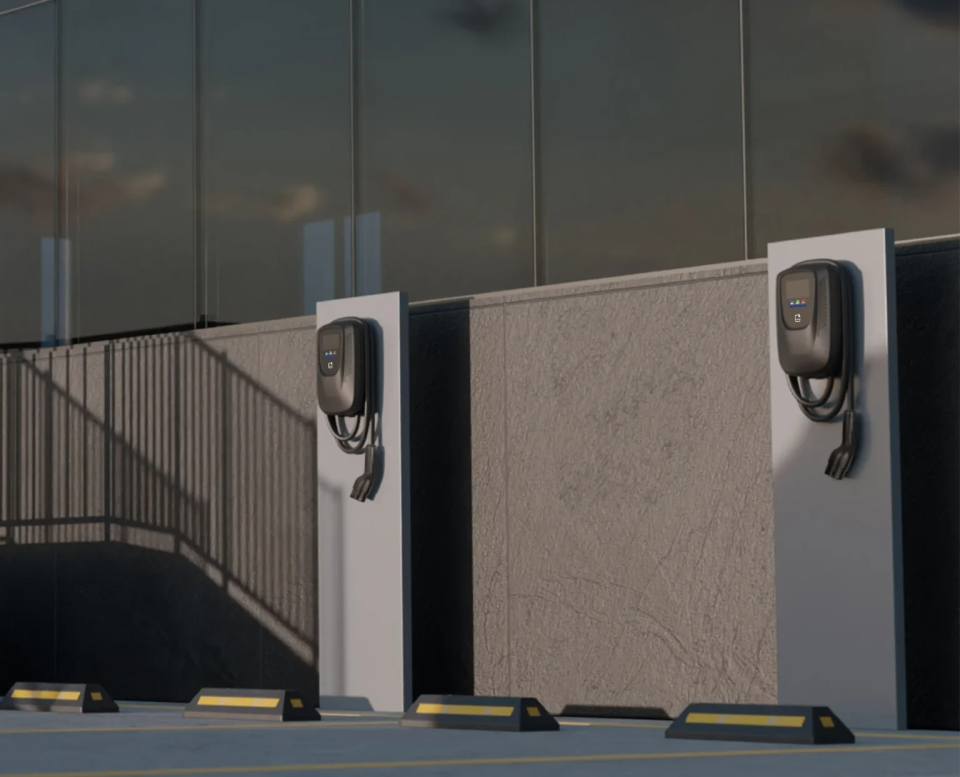

| Mounting Options | Wall mount or pedestal |
| Pedestal Models Shown | CS-SP (single or dual mount), CS-DRP |
| Warranty | 2-year warranty. |
| Overall User Rating | N/A |
| Price | $3,490.00 |
Smart Features of Cyber Switching - Commercial Commercial Dual 80A EV Charging Station
- RFID Access Control: Enables user authentication via RFID cards or credentials, ensuring secure access and restricted use of the charging station.
- Mobile App & Network Integration: Supports scheduling, session monitoring, payment handling and remote diagnostics through Wi-Fi, LAN or cellular connections.
- Dynamic Load Management: Adjusts power distribution intelligently to prevent circuit overloads and optimize infrastructure usage in multi-unit installations.
- Cable Management System: Includes retractable cables and an engineered pedestal mount that promotes tidy installation and convenient user access.
- Outdoor/Indoor Rated Enclosure: Certified for both interior and exterior use with weather-resistant housing and industrial-grade durability.
Product guides and documents of Cyber Switching - Commercial Commercial Dual 80A EV Charging Station
Advantages of the Cyber Switching - Commercial Commercial Dual 80A EV Charging Station
- High Power Output: Dual ports capable of delivering 80A each (~19.2 kW) reduce charging time and support heavy-duty commercial usage.
- Scalable Commercial Deployment: Designed with business use in mind, the station supports dual chargers, revenue modelling and fleet integration.
- Advanced Uptime and Reliability: Engineered for industrial environments with published uptime rates (~96.8%) reflecting strong build quality and support.
- Business Revenue Potential: Integrated payment and scheduling features allow property owners to monetize charging infrastructure and manage usage.
- Professional Fit & Finish: Sleek pedestal or wall installation options combined with cable management provide a premium appearance suitable for commercial sites.
Disadvantages of the Cyber Switching - Commercial Commercial Dual 80A EV Charging Station
- Higher Initial Investment: Premium commercial charger with smart features commands a larger upfront cost compared to basic Level 2 units.
- Electric Infrastructure Requirements: Delivers high current (up to 80A per port), which may necessitate upgrades to existing wiring or electrical panels.
- Complexity of Setup: Network integration, payment features and load-management require configuration and may introduce additional commissioning time.
- Limited to AC Level 2: While powerful, the station is a Level 2 charger and may not meet needs for DC fast charging deployments.
- Usage Requires Management: Commercial deployment implies ongoing monitoring, billing, scheduling and maintenance, adding operational overhead for property owners.
