ABB Inc Terra HVC360
ABB Inc. - Terra HVC360 Charging Station

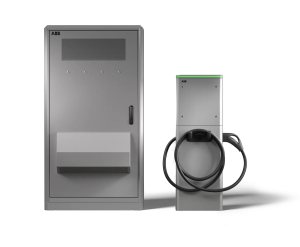

The ABB Inc. Terra HVC360 is a high-performance DC fast charger designed to meet the demanding needs of public transport fleets and heavy-duty electric vehicles. Built for reliability, it delivers consistent high power across multiple outlets, ensuring optimal uptime in intensive charging environments.
Engineered with advanced load-balancing and durable construction, the Terra HVC360 supports up to four outlets, allowing flexible power distribution up to 360 kW. Its stainless-steel enclosure, IP54 weather rating, and robust design make it ideal for both indoor and outdoor installations, setting a new benchmark in efficiency, safety, and scalability for fleet charging infrastructure.
Charging Speed
The ABB Inc. Terra HVC360 delivers up to 360 kW of DC power, enabling rapid charging for electric buses, trucks, and fleets—adding significant range in under 30 minutes.
Technical Specifications
| Charging Power | Configurable at 200 kW, 300 kW, or 360 kW |
| Dynamic Power Sharing | HVC200: 50 kW |
| Output Voltage | 150 – 940 V DC |
| Peak Output Current | HVC200: 285 A @ 700 V |
| Power Conversion Efficiency | Up to 96% |
| AC Input (Nominal Voltage) | CE: 400 V |
| AC Input Current (RMS) | HVC200: CE 315 A / NA 262 A |
| Vehicle Communication Protocols | DIN 70121, ISO/IEC 15118 (EIM), Autocharge, OppCharge, J3105-1/-2 (in development) |
| Frequency | CE: 50 Hz (±4%) |
| Operating Temperature Range | –30 °C to +55 °C (–22 °F to +131 °F) with derating |
| Mounting Type | Floor Mounted |
| Cabinet Dimensions (H × W × D) | 2180 × 1170 × 770 mm (85.8″ × 46.1″ × 30.3″) |
| Distance & Communication | Ethernet 100 m |
| Metering | CE: Eichrecht (in development) |
| Network Connections | 3G/4G, Ethernet (RJ45) |
| Warranty | 5 Years (Standard) |
| Customer Reviews | N/A |
| Price | N/A |
Smart Features of Terra HVC360
- Dynamic Power Sharing: Automatically distributes up to 360 kW between one to four outlets, optimizing power use and reducing charging downtime for multi-vehicle operations.
- Advanced Communication Protocols: Supports ISO 15118, OCPP 1.6 JSON, and OppCharge for seamless integration with fleet management systems and future-ready interoperability.
- Intelligent Thermal Management: Built-in temperature sensors and adaptive cooling ensure stable performance and extend equipment lifespan in high-demand conditions.

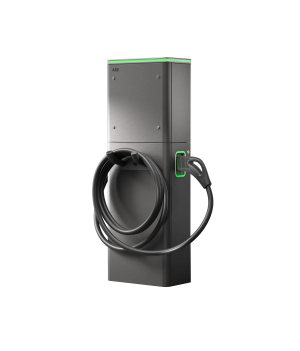

- Multiple Interface Options: Offers CCS1/2, Panto Down, and Panto Up configurations to accommodate various commercial EV applications and charging methods.
- LED Status Indicators: Equipped with four RGB LEDs (one per outlet) for real-time visual feedback on charging status and diagnostics.
- Remote Accessibility: Enables remote diagnostics, configuration, and software updates through Ethernet or 4G connectivity for streamlined maintenance and monitoring.
Product guides and documents
Advantages of Terra HVC360
- High Power Output: Delivers up to 360 kW with intelligent power sharing, ideal for large-scale fleet depots and transit charging networks.
- Exceptional Durability: Built with AISI 430 stainless steel and rated C5-H corrosion protection, ensuring longevity in harsh environmental conditions.
- Energy Efficiency: Achieves up to 96% conversion efficiency, minimizing operational costs while maximizing performance.
- Flexible Installation: Configurable for one to four outlets and compatible with various mounting and connector types.
Disadvantages of Terra HVC360
- High Initial Cost: Premium build quality and industrial-grade components increase the upfront investment for smaller operations.
- Large Footprint: Requires considerable installation space, making it less suitable for compact charging locations.
- Temperature Derating: Output power may slightly reduce when ambient temperatures exceed 55 °C (131 °F).
- Complex Installation Requirements: Needs dedicated high-voltage infrastructure and professional installation, increasing setup time.
- Limited Portability: Heavy design (up to 950 kg) restricts relocation once installed.
