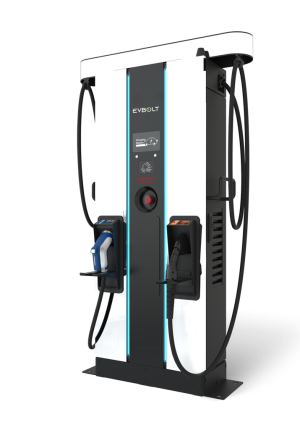

EVBolt ASTEROPE 15 - Port Priority EVB-DC-PS150
EVBolt - ASTEROPE 15 - Port Priority EVB-DC-PS150 Charging Station
Introducing the EVBOLT ASTEROPE 15 - Port Priority (EVB-DC-PS150), a cutting-edge 150kW DC fast charger that stands out as an industry leader. With its sleek design and compact footprint, this charger boasts a Single CCS1 charging interface tailored for programs like NEVI & CALeViP GSPP 2.0. The EVB-DC-PS150 guarantees optimal product lifespan, requiring minimal maintenance, and ensures a consistent, efficient charging experience for electric vehicle drivers.
Charging Speed
EVBOLT's ASTEROPE 15 excels in rapid charging, boasting an impressive charging speed of 150kW. This high-speed capability minimizes charging downtime, offering EV users a swift and convenient power replenishment solution.
Technical Specifications
| Model Name | EVB-DC-PS60 |
| Power Specification | |
| AC Input | |
| Input Rating | Three Phase_480Vac (+10%,15%) |
| AC Input Connection | 3P+N+PE (Wye configuration), TN/TT |
| Max. Input Current | DC System Three Phase 100A |
| Frequency | 50Hz/60Hz |
| Power Factor | >0.99 |
| Efflciency | >94% optimize V/I point |
| DC Output | |
| Max. Output Power | DC System:60kW |
| Voltage Accuracy | ±2% |
| Current Accuracy | ±2% |
| User Interface & Control | |
| Display | 7" TFT-LCD |
| Push Buttons | Operation button/Emergency stop button |
| User Authentication | RFID: support ISO 14443A/B, ISO 15693, FeliCa Lite-S (RCS966) OCPP, 2D barcode, APP, Mobile payment |
| External | Ethernet,Wi-Fi,and 4G |
| Internal | CAN bus/RS485 |
| Mechanical | |
| Cabinet Dimension(W x D x H) | 700 x 331 x 1800mm ±1% |
| Weight | ≤235kg ±1% |
| Cable Length | 4m |
| Cable | Optional Cable Management (Not included) |
| Input Protection | OVP,OCP,OPP,OTP,UVP,SPD |
| Output Protection | OCP,SCP,OVP,LVP,OTP,IMD |
| Charging Interface | CHAdeMO V1.2, DIN 70121, ISO15118, GB/T 27930 |
| Warranty | 2 Years |
| User Rating | N/A |
| Price | N/A |
Smart Features of EVBolt - ASTEROPE 15 - Port Priority EVB-DC-PS150
- Optional Non-Liquid-Cooled 500A Charging Connector: Choose the optional non-liquid-cooled 500A charging connector for enhanced flexibility and performance, adhering to charging connector instructions.
- Interface: CCS1: The charger's CCS1 interface ensures compatibility and efficient charging for a wide range of electric vehicles.
- Network or Standalone Operation: Enjoy the flexibility of networked or standalone operation, catering to diverse charging needs.
- User Authentication: Prioritize security with user authentication, adding an extra layer of protection to your charging sessions.
- Optional Cable Management Accessories: Customize your charging setup with optional cable management accessories, providing a neat and organized solution.
- Supports Smart Charging: Benefit from intelligent charging capabilities, optimizing energy usage and contributing to a sustainable charging ecosystem.
- 7-Inch LCD Screen with User-Friendly Interface: Interact seamlessly with the charger through the 7-inch LCD screen, featuring a user-friendly interface for a hassle-free experience.
- OCPP 1.6 JSON (Upgradable to 2.0): Stay up-to-date with the latest standards, as the charger is OCPP 1.6 JSON compliant and upgradable to 2.0 for enhanced compatibility.
- IKIO/NEMA 3R (Not Including Screen and RFID Module): Benefit from the charger's durable IKIO/NEMA 3R construction, excluding the screen and RFID module.
Product guides and documents of EVBolt - ASTEROPE 15 - Port Priority EVB-DC-PS150
Advantages of the EVBolt - ASTEROPE 15 - Port Priority EVB-DC-PS150
- High Charging Speed: Rapidly charges EVs, minimizing waiting times.
- Compact Footprint: Space-efficient design for versatile installation.
- User-Friendly Interface: 7-inch LCD screen ensures a seamless and intuitive experience.
- Smart Charging Efficiency: Optimizes energy usage for cost-effective charging.
- Versatile Authentication Options: User authentication provides enhanced security.
- Upgradeable Compatibility: OCPP 1.6 JSON can be upgraded to stay current with industry standards.
Disadvantages of the EVBolt - ASTEROPE 15 - Port Priority EVB-DC-PS150
- Non-Liquid-Cooled Connector: May limit extended high-duty usage.
- External Accessories Not Included: Some necessary components like screen and RFID module not provided.
- Dependency on Charging Connector's Instruction: Adherence to guidelines necessary for optimal performance.
- Limited Network Integration: Standalone operation may restrict connectivity options.
