EVBolt PRESTIGE 19 EVB-AC-PAX19

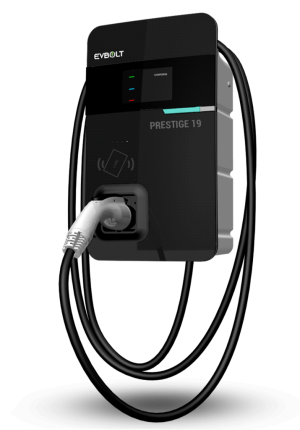

EVBolt - PRESTIGE 19 EVB-AC-PAX19 Charging Station
Introducing the EVBolT PRESTIGE 19 EVB-AC-PAX19, a cutting-edge AC Fast 19 kW charger that seamlessly blends power and flexibility. Tailored for both residential and commercial EV charging needs, this compact charger boasts an 80-amp output and a 5" LCD panel for real-time charging statistics. Its modern, ergonomic design and robust features make it an ideal choice for electric vehicle enthusiasts. Elevate your charging experience with EVBolT – where innovation meets efficiency.
Charging Speed
EVBolT's PRESTIGE 19 EVB-AC-PAX19 ensures swift charging with a 19 kW output, providing a rapid and efficient solution for electric vehicles. Experience high-speed charging without compromise, thanks to its advanced technology and user-friendly interface.
Technical Specifications
| Model | Prestige 19 - EVB-AC-PAX19 |
| Safety | UL/cULus (North America) |
| Power Specification | |
| Input Rating | Single-Phase: 200~240Vac |
| AC Input Connection | L1/L2/GND or L/N/PE |
| Max. Input Current | 80A |
| Frequency | 50Hz / 60Hz |
| Output Current | 80A |
| Output Power | 19.2 kW |
| User Interface & Control | |
| Display | LED Pilot Lamp (standard), 5-inch LCD (Optional) |
| User Authentication | RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa™, MIFARE), ISO 15118 |
| Meter | Meter IC (1% Accuracy ) |
| External | LAN+WiFi (Standard) or LAN+4G+WiFi (Optional) |
| Internal | OCPP 1.6 JSON (Upgradeable to 2.0) |
| Operating temperature | -22ºF ~ +122ºF ( -30ºC ~ +50ºC ) Standard |
| Humidity | < 85% (RH) @50ºC (+122ºF) |
| Altitude | < 6500ft |
| Mechanical | |
| Dimension(WxDxH) | 295mm x 158mm x 505mm (11.61in x 6.22in x 19.88in) |
| Weight | <15.43lbs (7kg) with Socket; <22lbs (10kg) With Cable |
| Cable Length | 5m (16.4ft) 7.5m (24.6ft) with Optional Cable Management |
| Regulation | |
| Certification | UL2594, UL2231-1/-2, CTEP, EnergyStar™ |
| Wireless Certification | FCC/IC |
| Charging Interface | SAEJ1772 Type 1 Plug |
| Warranty | 2 years |
| User Rating | N/A |
| Price | N/A |
Smart Features of EVBolt - PRESTIGE 19 EVB-AC-PAX19
- Residential and Commercial Compatibility: Tailored for diverse charging needs.
- Wired/Wireless Central Management: Optional connectivity for seamless control.
- Secure User Authentication: Utilizes RFID cards and QR codes for user management.
- Flexible Power Configuration: Supports dynamic output load distribution for enhanced flexibility.
- Cutting-Edge Technology: From Over the Air updates to ISO 15118 Protocol support, stay ahead in innovation.
- Weather-Resistant Design: Boasts an IP protection class of NEMA4 for outdoor durability.
Product guides and documents of EVBolt - PRESTIGE 19 EVB-AC-PAX19
Advantages of the EVBolt - PRESTIGE 19 EVB-AC-PAX19
- High Charging Output: With a 19 kW output, enjoy faster charging times.
- User-Friendly Interface: 5" LCD display for real-time charging statistics.
- Versatile Connectivity: Supports OCPP 1.6 JSON and external communication interfaces.
- Secure Authentication: RFID cards and QR codes ensure safe and authorized usage.
- Weather-Proof Design: Built with an IP protection class of NEMA4 for durability.
- Innovative Technology: Over the Air updates and ISO 15118 Protocol support for staying current.
Disadvantages of the EVBolt - PRESTIGE 19 EVB-AC-PAX19
- Limited Display Options: The optional 5" LCD display might be insufficient for users requiring larger screens.
- External Communication Optional: RS232/485 external communication interface is not a standard feature.
- Potential Complexity: Advanced features may pose a learning curve for some users.
- Specific Charging Interface: Supports SAE J1772 (Type 1), limiting compatibility with certain EV models.
- Weather-Resistant, Not Weather-Proof: While IP protected, prolonged exposure to extreme conditions may impact performance.
- Upgrade Required for Latest Protocols: OCPP 1.6 JSON is upgradable to 2.0, requiring additional steps for the latest features.
