Pion Power Flex-AC LE EV Charger 40A, 9.6kW

Pion Power - Flex-AC LE EV Charger 40A, 9.6kW

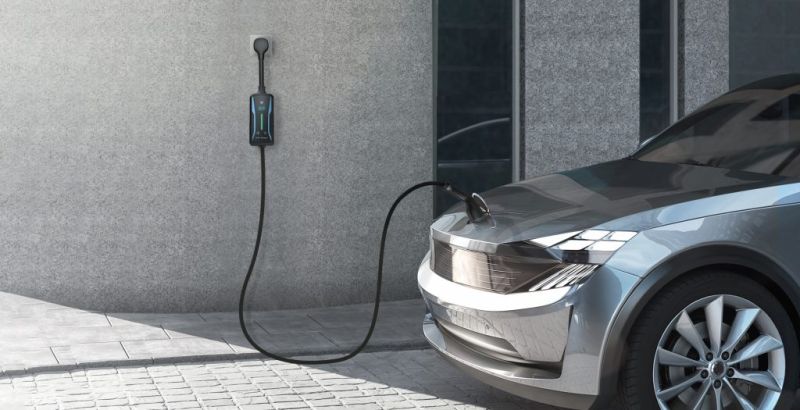

The Pion Power Flex-AC LE EV Charger 40A, 9.6kW is an innovative charging solution designed to deliver unmatched speed and reliability. Built to support both residential and outdoor environments, its robust construction ensures long-lasting durability while offering precision and control.

This charger integrates intelligent features such as adjustable amperage, real-time monitoring, and delay start options for efficient energy management. With universal SAE J1772 compatibility and certifications like CSA and Energy Star, the Flex-AC LE EV Charger is an ideal choice for electric vehicle owners seeking a high-performance charging solution.

Charging Speed

The Pion Power Flex-AC LE EV Charger delivers up to 9.6kW of power at 40 amps, providing charging speeds up to 7 times faster than traditional Level 1 chargers.

Technical Specifications

Adapter	N5-15P N14-50P
Input Voltage	120Vac 240Vac
Output Current	12A 40A
Max. Output Power	1.4kW 9.6kW
Output Voltage	100-250 volt AC single-phase
Input Frequency	50Hz or 60Hz
Control Box Material	PC+PBT. Flame retardance UL94: 5VA
Handle	PC+PBT. Copper, silver-plated
Cable Material	Copper + TPE
Total Length	22ft (6.6 meters) with charging handle installed
Impact Resistance	Able to withstand 3.3ft (1 meter) free fall drop and 4,409 lbs (2.000kg) vehicle crush test without critical damage.
LED Indicator	Red/green/blue
LCD display	1.3 inch OLED blue screen
Operating Temperature	22°F ~ 122°F (-30°C ~ 50°C)
Working Humidity	5%~95% without condensation
Working Altitude	<1.24 miles (2,000 meters
Control Box Enclosure Type	NEMA 4 (IP66)
Operating Environment	Over-voltage protection, Under-voltage protection, Overheating protection, Over-current protection, Leakage protection, Grounding protection, Lightning protection, Fire and flame protection, Waterproof, Dust proof, Antistatic protection
Control Box Dimensions	9.53 x 4.15 x 2.66 inch (242 x 105.5 x 67.5mm)
Carrying Case Dimensions	15.35 x 13.78 x 5.12 inch (390 x 350 x 130mm)
Package Dimensions	17.72 x 16.14 x 7.28 inch (450 x 410 x 185mm)
Net Weight	13 lbs (5.9kg)
Gross Weight	17.2 lbs (7.8kg)
External Packing	Carton
Charging
Charging
External Packing	Carton
Charging Handle/Connecter Life Cycle	10,000 insertion/removal events (no load)
Communication	Wi-Fi, Hotspot
Safety Standards	UL 2594, UL2231-1, UL2231-2, CSA C22.2 No.280, CSA C22.2 No.281.1, CSA C22.2 No.281.2
Other Certifications	FCC, FCC ID, Energy Star
Warranty Protection	2-year limited warranty
User Rating	N/A
Price	N/A

Smart Features of Pion Power - Flex-AC LE EV Charger 40A, 9.6kW

• Adjustable Charging Amperage: Flexible settings from 8A to 40A prevent circuit overload and accommodate varied power capacities.

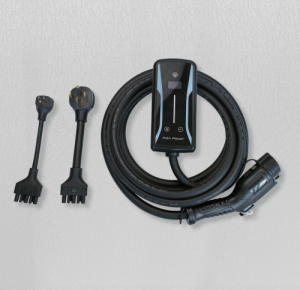

• Dual Voltage Support: Compatible with 120V and 240V outlets using NEMA 5-15P and NEMA 14-50P adapters for versatile installations.

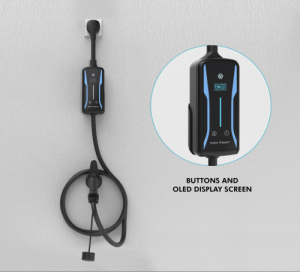

• Real-Time OLED Display: Provides live updates on charging status, current adjustments, and programmable delay features for added convenience.

• Advanced Safety Sensors: Equipped with intelligent sensors to detect and prevent overheating, overvoltage, and short circuits.

• Universal EV Compatibility: Features the SAE J1772 connector to charge all major electric vehicles, including Tesla models when used with an adapter.

• Weather-Resistant Enclosure: NEMA 4/IP66 rated housing ensures durability for outdoor use, even in harsh environmental conditions.

Product guides and documents of Pion Power - Flex-AC LE EV Charger 40A, 9.6kW

Pion Power - Flex-AC LE EV Charger 40A, 9.6kW Technical Specification Sheet

Advantages of the Pion Power - Flex-AC LE EV Charger 40A, 9.6kW

• Rapid Charging Speeds: Offers up to 7 times faster charging compared to Level 1 chargers for reduced vehicle downtime.

• Enhanced Energy Management: Adjustable amperage settings optimize power use while protecting electrical circuits.

• Certifications for Reliability: CSA, Energy Star, and FCC certifications guarantee superior performance and safety standards.

• Universal Vehicle Support: SAE J1772 connector ensures compatibility with various EVs, increasing the charger’s versatility.

• User-Friendly Operation: OLED screen and intuitive controls make it easy to monitor and adjust charging settings.

• Durable Construction: NEMA 4/IP66 enclosure protects against water, dust, and extreme weather for dependable outdoor performance.

Disadvantages of the Pion Power - Flex-AC LE EV Charger 40A, 9.6kW

• Tesla Adapter Required: Additional equipment is needed to charge Tesla vehicles.

• Dependency on Outlet Type: Maximum charging efficiency requires a 240V outlet, which may not be readily available.

• Higher Initial Cost: The advanced features and certifications come with a premium price point.

• Manual Configuration Needed: Users must manually set charging parameters, which may not appeal to all customers.

• Limited to North America: Designed specifically for SAE J1772 standards, limiting its global usability.

• Bulkier Build: Despite its durability, the sturdy design can make portability less convenient for frequent travelers.
