Enphase HCS-60 with COSMOS With J1772 connector

The Enphase HCS-60 EV Charger with COSMOS delivers commercial-grade performance with intelligent integration capabilities. Designed for high-traffic and fleet environments, this 48 A Level 2 charger provides dependable power delivery while enabling advanced system connectivity.

Equipped with COSMOS technology, the HCS-60 integrates seamlessly with building energy management and third-party control systems. Its fully sealed NEMA 4 enclosure ensures superior protection against dust, water, and impact, while the rugged J1772 connector and 18 ft cable provide durability and flexibility. The integrated cable wrap and holster maintain a clean, professional setup in any installation environment.

Charging Speed

The Enphase HCS-60 EV Charger with COSMOS delivers up to 11.5 kW of charging power, adding approximately 46 miles of driving range per hour for efficient Level 2 charging.
Enphase HCS-60 EV with COSMOS 01.png

Technical Specifications

ELECTRICAL SPECIFICATIONS
Charging power 48 A (11.5 kW) max
Input voltage/Input voltage range 208/240 VAC (L-L), single-phase/185 VAC – 264 VAC
Input voltage frequency 50/60 Hz
Circuit breaker requirement Dedicated, 2-pole 60 A
Input cable type Pre-wired with (L1, L2, Gnd) 8 AWG service whip/3' (914.4 mm)
Input cable length
  • 3' (914.4 mm)
  • 12" (304.8 mm)
Maximum output current/Output power 48 A continuous/11.5 kW
Output cable/Cable length 18' (5.5) 1
MECHANICAL DATA
Enclosure mounting Wall or pedestal mounted (pedestal sold separately)
Enclosure dimensions (L × W × D) 19.7" × 8.9" × 5.3" (500 mm × 226 mm × 135 mm)
Weight 17.8 lbs. (8.1 kg)
ENVIRONMENTAL SPECIFICATIONS
Enclosure rating NEMA Type 4 - watertight
Environment rating Indoor and outdoor
Operating / Storage temperature –22°F to 122°F (–30°C to 50°C)/–40°F to 176°F (–40°C to 80°C)
COMPLIANCE SPECIFICATIONS
Codes and standards NEC Article 625, SAE J1772, NACS, ENERGY STAR®, UL
Safety compliance
  • UL 2594, UL 2251, UL 2231-1, UL 2231-2, UL 1998, UL 991
  • C22.2 No. 280-13, CSA C22.2 No. 282, CSA C22.2 No. 281.1, CSA C22.2 No. 281.2, CSA C22.2 No. 0.8
EMC compliance FCC Part 15 Class B
Short-circuit protection 5000 RMS Symmetrical Amps at 240 VAC
Open safety ground detection Features a continuous earth ground monitor to ensure consistent connection to good earth ground
Ground fault detection Ground fault protection integral, CCID 20 mA, auto reset
Auto-reclosure System will automatically resume standard operation after a minor power fault has cleared
FEATURES
Four LED indicators Amber LED: Power, Green LED: Charging, 1st Red LED: Power fault, 2nd Red LED: Charging fault
Charging Power 48 A (11.5 kW) maximum output, providing fast and efficient Level 2 charging performance
Input Voltage 208/240 V, 60 A supply circuit for high-power energy delivery and reliable performance
Integration Technology COSMOS-enabled for communication with building energy management and third-party control systems
Connector Type Ruggedized SAE J1772 connector, impact and crush-resistant with watertight Type 4X corrosion-resistant over-molded rubber housing
Installation Type Hardwired setup with 3 ft service whip provided for secure and permanent installation
Enclosure Rating Fully sealed NEMA 4-rated housing protects against dust, moisture, and extreme weather conditions for indoor or outdoor use
Operating Temperature Range Functions effectively from –22°F to +122°F (–30°C to +50°C), suitable for all climates
Warranty 5-year
User Rating N/A
Price $1,733

Smart Features of Enphase HCS-60 with COSMOS With J1772 connector

  • COSMOS Integration Interface: Enables seamless connectivity with building management and energy systems for advanced monitoring, load management, and automated control.
  • Digital Load Management: Offers adjustable power output with four preset levels (100%, 50%, 25%, and 0%) for balanced energy distribution and demand optimization.
  • Advanced UART Communication: Provides serial connectivity for real-time status reporting, diagnostics, and custom integration with third-party applications.
  • Automatic Fault Recovery: Detects and restores charging automatically after minor power interruptions, ensuring uninterrupted operation.
  • External LED Support: Allows integration of up to two external LED indicators for live visual monitoring of power and charging status.
  • Integrated Cable Storage: Includes an 18 ft charging cable with a wall-mounted holster for secure, organized cable management.

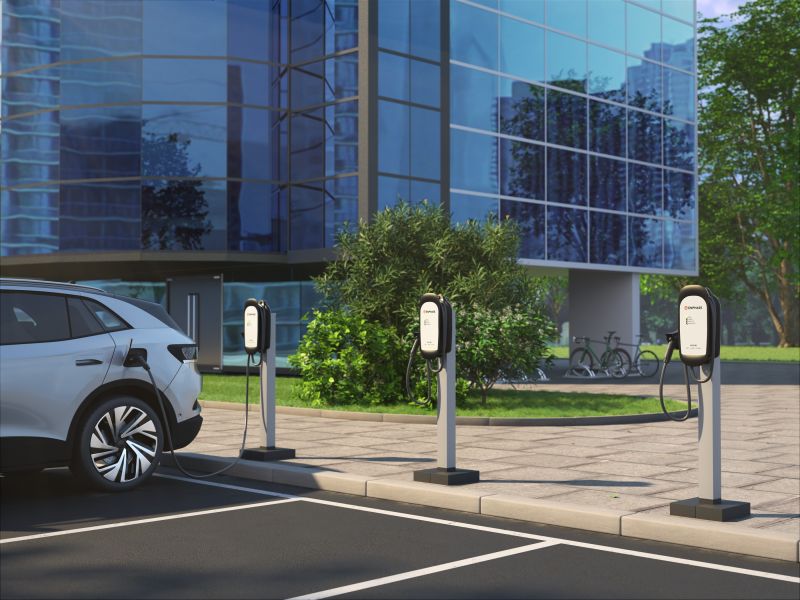

Enphase HCS-60 EV with COSMOS 02.jpg

Product guides and documents of Enphase HCS-60 with COSMOS With J1772 connector

Enphase HCS-60 EV with COSMOS Product Manual Sheet

Enphase HCS-60 EV with COSMOS Product Technical Specification Sheet

Advantages of the Enphase HCS-60 with COSMOS With J1772 connector

  • High-Power Output: Offers 48 A and 11.5 kW for rapid charging, suitable for both commercial and fleet vehicles.
  • Commercial-Grade Durability: Built with a fully sealed NEMA 4-rated enclosure and impact-resistant materials for long-term reliability in any climate.
  • Flexible Integration: COSMOS technology allows seamless system compatibility with building automation and energy optimization platforms.
  • Universal Vehicle Support: Compatible with all North American EVs using the standard SAE J1772 connector.
  • Energy-Efficient Operation: Minimal standby consumption ensures reduced power costs and environmentally responsible performance.
  • Warranty Protection: Supported by Enphase’s 5-year limited warranty, providing dependable performance assurance for commercial installations.

Disadvantages of the Enphase HCS-60 with COSMOS With J1772 connector

  • Hardwired Setup: Requires professional electrical installation, increasing initial setup costs.
  • No Wireless Connectivity: Lacks Wi-Fi or Bluetooth for smartphone app-based monitoring or control.
  • Technical Configuration Needed: COSMOS setup may require IT or engineering knowledge for integration with building systems.
  • Fixed Mount Design: Permanent installation limits mobility or quick relocation options.
  • Shorter Cable Length: 18 ft cable provides less range compared to longer residential models.
  • Higher Upfront Cost: Advanced COSMOS functionality and commercial-grade build add to the total investment.

Where to buy

Retrieved from "https://evcharger.wiki/index.php?title=Enphase_HCS-60_EV_with_COSMOS&oldid=6008"
