SemaConnect IQ 200 Advanced Charging Solutions: Difference between revisions
| Line 12: | Line 12: | ||
== Technical Specifications == | == Technical Specifications == | ||
{| class="wikitable" | {| class="wikitable" | ||
|- | |||
| '''BLINK IQ 200 PRODUCT SPECIFICATIONS''' || | |||
|- | |||
| '''MODELS''' || | |||
* '''Smart Charging Station''' | |||
* '''Advanced Charging Station''' | |||
|- | |||
| Model Number || | |||
* IQW2-80U-W2-N1-N-25 | |||
* IQW2-80U-M2-R3-N-25 | IQW2-80U-M3-R3-N-25 | |||
|- | |- | ||
| '''POWER SPECIFICATIONS''' || | | '''POWER SPECIFICATIONS''' || | ||
|- | |- | ||
| | | Standby Power || <10W Standby | ||
|- | |||
| Output Power (kW) || 2.9kW, 3.8kW, 5.8kW, 7.7kW, 9.6kW, 15.4kW, 17.3kW, 19.2kW | |||
|- | |||
| Output Amperage (A) || 12A, 16A, 24A, 32A, 40A, 64A, 72A, 80A | |||
|- | |||
| Circuit Breaker Options (A) || 15A, 20A, 30A, 40A, 50A, 80A, 90A, 100A | |||
|- | |- | ||
| | | Input/Output Nominal Voltage || 208VAC/240VAC | ||
|- | |- | ||
| | | Input / Output Voltage Range || 180VAC to 264VAC | ||
|- | |- | ||
| | | Input / Output Frequency || 60Hz | ||
|- | |- | ||
| | | Input Wiring Type || Hardwired | ||
|- | |- | ||
| | | Input Wiring Scheme || L1, L2, GND | ||
|- | |- | ||
| | | Cold-Load || Pickup Randomized delay between 120 and 720 seconds before charge resumes after a power failure. | ||
|- | |||
| Power Measurement Accuracy || Embedded meter with a ±1% accuracy at the nominal input. | |||
|- | |||
| Surge Protection || Up to 6kV at 3,000A | |||
|- | |- | ||
| '''FUNCTIONAL SPECIFICATIONS''' || | | '''FUNCTIONAL SPECIFICATIONS''' || | ||
|- | |- | ||
| | | Charge Connector Type || SAE J1772 | ||
|- | |- | ||
| | | Charge Cable Length || 23 ft. | ||
|- | |- | ||
| | | Demand Response || Yes–OpenADR 2.0b | ||
|- | |- | ||
| | | Status Indicator || LED and Audio | ||
|- | |||
| User Interface || | |||
* None | |||
* LCD, 7”, Color, 800x480, w/Touch Panel | |||
|- | |||
| Access Control || None or | |||
* Contactless Reader: RFID Cards: ISO/IEC 14443A/B, ISO/IEC 15693, MIFARE Plus, HID iCLASS, NEMA | |||
* Smart Credit Cards2: Visa, Master Card, Discover, American Express NFC2: ISO 18092, Apple Pay, Google Wallet | |||
|- | |- | ||
| | | '''NETWORK SPECIFICATIONS''' || | ||
|- | |- | ||
| | | Local Area Network (LAN) || 2.4GHz Wi-Fi (802.11 b/g/n) | ||
|- | |- | ||
| | | Wide Area Network (WAN) || | ||
* None | |||
* 2G, 3G, and 4G LTE Support | |||
|- | |- | ||
| | | Network Interface || Blink OCPP, OCPP 1.6J, Future: OCPP 2.0, OCPP 2.0.1 (Coming in 2022) | ||
|- | |- | ||
| | | Mounting Type || Pedestal or Wall Mount | ||
|- | |- | ||
| ''' | | '''SAFETY & COMPLIANCE SPECIFICATIONS''' || | ||
|- | |- | ||
| | | Ground Fault Detection || CCID20, 20mA per UL 2231, Automatic Reset Feature and Manual Reset Feature | ||
|- | |- | ||
| | | Ground Monitor || Ground Monitor per UL 2231 | ||
|- | |- | ||
| | | Safety Compliance || UL and cUL, NEC Article 625, RoHS, Norma Oficial Mexicana (NOM) | ||
|- | |||
| Protection || Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), Over-Current Protection (OCP), Over-Temp Protection (OTP), Short-Circuit Protection UL approved input fuses (built in) short circuit rating: AC 200 kA RMS Symmetrical | |||
|- | |||
| EMC Compliance || FCC Part 15 Class B, Industry Canada (IC), PTCRB | |||
|- | |||
| ADA Compliance || Yes | |||
|- | |||
| Energy Star Certified || Yes | |||
|- | |||
| '''BLINK IQ 200 PRODUCT SPECIFICATIONS''' || | |||
|- | |||
| Enclosure Rating || NEMA 3R Certified, IK08 Certified | |||
|- | |||
| Operating Temperature || -30°C to +50°C (-22°F to +122°F) | |||
|- | |||
| Storage Temperature || -40°C to +80°C (-40°F to +176°F) | |||
|- | |||
| Operating Humidity || 0 to 95% Relative Humidity, Non-Condensing | |||
|- | |||
| Charger Dimensions || 13.95”H × 10.65”W × 5.23”D | |||
|- | |- | ||
| | | Package Dimensions || 19.57”L x 14.92”W x 16.61”D | ||
|- | |- | ||
| | | Charger Weight (Unpackaged) || | ||
* 24.2lbs. (11kg) | |||
* 25.3lbs. (11.5kg) | |||
|- | |- | ||
| | | Charger Weight (Packaged) || | ||
* | * 30lbs. (13.6kg) | ||
* | * 31lbs. (14kg) | ||
|- | |- | ||
| '''Warranty Protection''' || | | '''Warranty Protection''' || N/A | ||
|- | |- | ||
| '''User Rating''' || N/A | | '''User Rating''' || N/A | ||
Revision as of 16:31, 21 December 2024
SemaConnect - IQ 200 Advanced Charging Solutions
The IQ 200 Advanced Charging Solutions by SemaConnect delivers a seamless charging experience with its versatile payment options and real-time monitoring capabilities. Designed for convenience, it features time-based, kWh-based, or session-based billing, ensuring flexibility for users. Equipped with a 7" Daylight color LCD touch screen, the charger provides clear visibility and ease of use, automatically dimming when not in use to conserve energy.
This charger supports both cellular and Wi-Fi communication, making it adaptable for various environments. SemaConnect’s IQ 200 also offers multiple mounting options, allowing for easy installation in diverse locations. Future updates will include Apple Pay and Google Wallet payment acceptance, further enhancing convenience.
Charging Speed
The IQ 200 Advanced Charging Solutions offers quick and efficient charging with real-time usage and energy demand monitoring, ensuring optimal performance and faster recharges.
Technical Specifications
| BLINK IQ 200 PRODUCT SPECIFICATIONS | |
| MODELS |
|
| Model Number |
|
| POWER SPECIFICATIONS | |
| Standby Power | <10W Standby |
| Output Power (kW) | 2.9kW, 3.8kW, 5.8kW, 7.7kW, 9.6kW, 15.4kW, 17.3kW, 19.2kW |
| Output Amperage (A) | 12A, 16A, 24A, 32A, 40A, 64A, 72A, 80A |
| Circuit Breaker Options (A) | 15A, 20A, 30A, 40A, 50A, 80A, 90A, 100A |
| Input/Output Nominal Voltage | 208VAC/240VAC |
| Input / Output Voltage Range | 180VAC to 264VAC |
| Input / Output Frequency | 60Hz |
| Input Wiring Type | Hardwired |
| Input Wiring Scheme | L1, L2, GND |
| Cold-Load | Pickup Randomized delay between 120 and 720 seconds before charge resumes after a power failure. |
| Power Measurement Accuracy | Embedded meter with a ±1% accuracy at the nominal input. |
| Surge Protection | Up to 6kV at 3,000A |
| FUNCTIONAL SPECIFICATIONS | |
| Charge Connector Type | SAE J1772 |
| Charge Cable Length | 23 ft. |
| Demand Response | Yes–OpenADR 2.0b |
| Status Indicator | LED and Audio |
| User Interface |
|
| Access Control | None or
|
| NETWORK SPECIFICATIONS | |
| Local Area Network (LAN) | 2.4GHz Wi-Fi (802.11 b/g/n) |
| Wide Area Network (WAN) |
|
| Network Interface | Blink OCPP, OCPP 1.6J, Future: OCPP 2.0, OCPP 2.0.1 (Coming in 2022) |
| Mounting Type | Pedestal or Wall Mount |
| SAFETY & COMPLIANCE SPECIFICATIONS | |
| Ground Fault Detection | CCID20, 20mA per UL 2231, Automatic Reset Feature and Manual Reset Feature |
| Ground Monitor | Ground Monitor per UL 2231 |
| Safety Compliance | UL and cUL, NEC Article 625, RoHS, Norma Oficial Mexicana (NOM) |
| Protection | Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), Over-Current Protection (OCP), Over-Temp Protection (OTP), Short-Circuit Protection UL approved input fuses (built in) short circuit rating: AC 200 kA RMS Symmetrical |
| EMC Compliance | FCC Part 15 Class B, Industry Canada (IC), PTCRB |
| ADA Compliance | Yes |
| Energy Star Certified | Yes |
| BLINK IQ 200 PRODUCT SPECIFICATIONS | |
| Enclosure Rating | NEMA 3R Certified, IK08 Certified |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) |
| Storage Temperature | -40°C to +80°C (-40°F to +176°F) |
| Operating Humidity | 0 to 95% Relative Humidity, Non-Condensing |
| Charger Dimensions | 13.95”H × 10.65”W × 5.23”D |
| Package Dimensions | 19.57”L x 14.92”W x 16.61”D |
| Charger Weight (Unpackaged) |
|
| Charger Weight (Packaged) |
|
| Warranty Protection | N/A |
| User Rating | N/A |
| Price | N/A |
Smart Features of SemaConnect - IQ 200 Advanced Charging Solutions
- Flexible Billing Options: Offers time-based, kWh-based, or session-based billing to suit different usage patterns, making it adaptable to various business models.

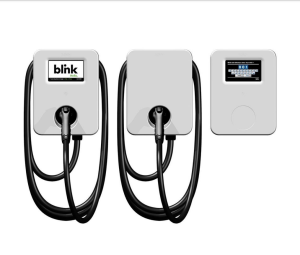

- User-Friendly Touchscreen: The 7" Daylight LCD touch screen provides clear information and intuitive navigation, enhancing user experience and ease of operation.
- Dual Communication Modes: Features both cellular and Wi-Fi communication modes, enabling remote monitoring and software updates for seamless operation.
- Energy Monitoring: Built-in usage and demand energy monitor allow users to track energy consumption and optimize charging practices for efficiency.
- Multi-Payment Options: Accepts payments via RFID, credit cards, and soon, Apple Pay and Google Wallet, ensuring a wide range of payment choices for users.
Product guides and documents of SemaConnect - IQ 200 Advanced Charging Solutions
SemaConnect - IQ 200 Advanced Charging Solutions Technical Specification Sheet
SemaConnect - IQ 200 Advanced Charging Solutions Product Manual Sheet
Advantages of the SemaConnect - IQ 200 Advanced Charging Solutions

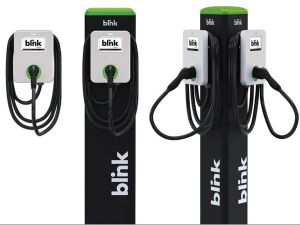

- Versatile Mounting Options: The charger can be installed in multiple locations, providing flexibility for businesses or individuals with different spatial requirements.
- Convenient Payment Methods: With support for various payment methods, including RFID and credit cards, it caters to different user preferences and ensures seamless transactions.
- Real-Time Energy Monitoring: The energy monitor allows users to track consumption, leading to better decision-making in energy use and cost management.
- Future-Proof Technology: The upcoming support for Apple Pay and Google Wallet ensures that the IQ 200 will remain up-to-date with the latest payment trends, enhancing customer convenience.
- Energy Efficiency: With an auto-dim feature, the LCD screen saves energy, reducing power consumption when the charger is not in use.
Disadvantages of the SemaConnect - IQ 200 Advanced Charging Solutions
- Limited Payment Methods Currently: At present, it does not accept Apple Pay and Google Wallet, which may limit some users' payment preferences.
- Installation Complexity: Although offering multiple mounting options, installation might be complex for users without technical knowledge or professional help.
- Connectivity Reliance: The charger’s performance is dependent on stable Wi-Fi or cellular connections, which may affect functionality in areas with poor network coverage.
- Size of the Screen: While the 7" LCD screen is clear, its size may not be ideal for all environments, requiring adequate space for proper visibility.
