Grizzl-E Duo GCD-14-24-P: Difference between revisions
(Created page with "==Grizzl-E- Duo GCD-14-24-P Charging Station== Introducing the Grizzl-E Duo, a game-changing dual port EVSE crafted by Grizzl-E. This revolutionary charger is meticulously designed to effortlessly charge two electric vehicles simultaneously, catering to households with multiple EVs. With intelligent power-sharing capabilities and two 24-ft J1772 cables, the Duo ensures seamless charging experiences. Delivering up to 10 KW of power to a single vehicle, it dynamically dist...") |
No edit summary Tag: Manual revert |
||
| (2 intermediate revisions by the same user not shown) | |||
| Line 11: | Line 11: | ||
{| class="wikitable" | {| class="wikitable" | ||
|- | |- | ||
| '''Model number''' || | | '''Model number''' || GCD-14-24-P | ||
|- | |- | ||
| Material || | | Material || Aluminium Enclosure | ||
|- | |- | ||
| Country of origin || CA | | Country of origin || CA | ||
|- | |- | ||
| Weight || | | Weight || 18.00 kg / 39.68 lbs | ||
|- | |- | ||
| Dimensions || L - | | Dimensions || L - 406 mm / 15.98 in ,W - 457 mm / 17.99 in ,H - 385 mm / 15.16 in | ||
|- | |- | ||
| Type || AC Level 2 | | Type || AC Level 2 | ||
|- | |- | ||
| | | Type || AC Level 2 | ||
|- | |||
| Enclosure || 10.25″ x 6.25″ x 6.75″ | |||
|- | |- | ||
| Max power || 10 kW | | Max power || 10 kW | ||
| Line 33: | Line 35: | ||
| Connectivity || No Connection | | Connectivity || No Connection | ||
|- | |- | ||
| | | Connector type || Type 1 (SAE J1772) | ||
|- | |- | ||
| Adjustable current || 32A, 24A, 16A | | Adjustable current || 32A, 24A, 16A | ||
|- | |- | ||
| Output cable length || 24ft (7.3m) | |||
| Output cable length || | |||
|- | |- | ||
| Operating temperature || -30C .. +50C (-22F .. 122F) | | Operating temperature || -30C .. +50C (-22F .. 122F) | ||
| Line 49: | Line 47: | ||
| '''User Rating''' || N/A | | '''User Rating''' || N/A | ||
|- | |- | ||
| '''Price''' || The range of $ | | '''Price''' || The range of $799 to $879 USD | ||
|} | |} | ||
| Line 81: | Line 79: | ||
== Where to buy == | == Where to buy == | ||
* [https://grizzl-e.com/products/grizzl-e- | * [https://grizzl-e.com/products/grizzl-e-duo/ Official] | ||
* [https://www.amazon.com/Grizzl- | * [https://www.amazon.com/Grizzl-Level-Charger-Premium-Cables/dp/B09GL3DLH7 Amazon] | ||
Latest revision as of 15:37, 7 February 2024

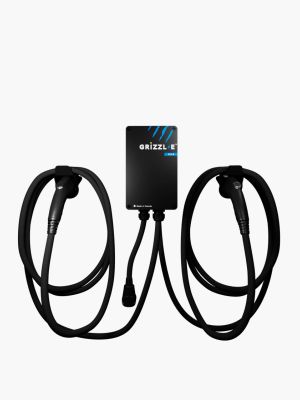

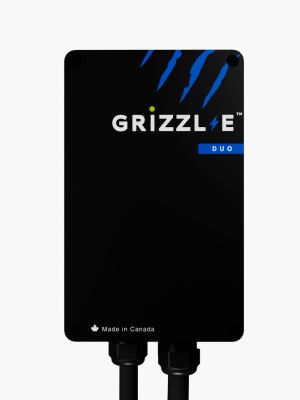

Grizzl-E- Duo GCD-14-24-P Charging Station
Introducing the Grizzl-E Duo, a game-changing dual port EVSE crafted by Grizzl-E. This revolutionary charger is meticulously designed to effortlessly charge two electric vehicles simultaneously, catering to households with multiple EVs. With intelligent power-sharing capabilities and two 24-ft J1772 cables, the Duo ensures seamless charging experiences. Delivering up to 10 KW of power to a single vehicle, it dynamically distributes available current between both vehicles for optimal efficiency. Grizzl-E Duo redefines convenience and versatility in electric vehicle charging solutions.
Charging Speed
Grizzl-E Duo empowers electric vehicle owners with swift charging capabilities, providing efficient power delivery to multiple vehicles, enhancing convenience without compromising on speed or performance.
Technical Specifications
| Model number | GCD-14-24-P |
| Material | Aluminium Enclosure |
| Country of origin | CA |
| Weight | 18.00 kg / 39.68 lbs |
| Dimensions | L - 406 mm / 15.98 in ,W - 457 mm / 17.99 in ,H - 385 mm / 15.16 in |
| Type | AC Level 2 |
| Type | AC Level 2 |
| Enclosure | 10.25″ x 6.25″ x 6.75″ |
| Max power | 10 kW |
| Plug type | NEMA 14-50, NEMA 6-50 |
| Max current | 40A (default) |
| Connectivity | No Connection |
| Connector type | Type 1 (SAE J1772) |
| Adjustable current | 32A, 24A, 16A |
| Output cable length | 24ft (7.3m) |
| Operating temperature | -30C .. +50C (-22F .. 122F) |
| Warranty | N/A |
| User Rating | N/A |
| Price | The range of $799 to $879 USD |
Smart Features of Grizzl E - Duo GCD-14-24-P
- Dual Port Charging: Simultaneously charge two electric vehicles with individual 24-ft J1772 cables.
- Adjustable Current Output: Customize current output (40A, 32A, 24A, 16A) to support various circuit ratings (50A, 40A, 30A, 20A).
- Rugged Design: Built to withstand extreme conditions, featuring a heavy-duty aluminum cast case and airtight enclosure for indoor or outdoor use.
- EasyEvPlug™ Holster: Includes a convenient cable management system for hassle-free storage.
- Versatile Mounting Options: Choose from wall mount, pedestal, or bollard/pole configurations for seamless installation.
Product guides and documents of Grizzl E - Duo GCD-14-24-P
Advantages of the Grizzl E - Duo GCD-14-24-P
- Dual Vehicle Charging: Effortlessly charge two electric vehicles simultaneously, ideal for households with multiple EVs.
- Customizable Current Output: Tailor current output to suit various circuit ratings for enhanced flexibility.
- Rugged Construction: Built to last with a robust aluminum cast case, ensuring durability in any environment.
- Convenient Cable Management: Integrated EasyEvPlug™ Holster facilitates easy storage and organization of charging cables.
Disadvantages of the Grizzl E - Duo GCD-14-24-P
- Adapter Requirement for Tesla: Requires a J1772/Tesla adapter for charging Tesla vehicles, adding an extra accessory for Tesla owners.
- Refurbished Units: Refurbished units may exhibit minor scratches or visual defects due to transportation and handling, although performance remains unaffected.
