Revision as of 06:30, 25 January 2024

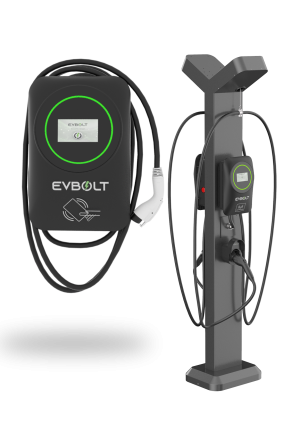

EVBolt - BNZO 22 EVB-AC-B2X11DHD Charging Station
EVBolt presents the BNZO 22 EVB-AC-B2X11DHD, a groundbreaking dual-port AC charger that redefines the charging experience. Meticulously designed for limited spaces, this workhorse combines form and function seamlessly. Its 21.5-inch TFT LCD Screen with 1080P not only facilitates user-friendly navigation but also serves as a lucrative platform for additional advertisement revenue at commercial charging sites.
Charging Speed
Experience unparalleled charging speed with EVBolt's BNZO 22 EVB-AC-B2X11DHD. Harnessing cutting-edge technology, this charger ensures swift replenishment, delivering a high-performance charging experience that keeps pace with your dynamic lifestyle.
Technical Specifications
| Model | BNZO 22 (EVB-AC-B2X11DHD) |
| AC Input | |
| Voltage Rating | Single Phase 200 – 240Vac |
| Max. Input Current | 2 x 32A, 2 x 40A, 2 x 48A |
| Frequency | 50Hz/60Hz |
| AC OUTPUT | |
| Output Voltage Range | 200 – 240 Vac |
| Max. Output Current | 2 x 32A, 2 x 40A , 2 x 48A |
| Max. Output Power | 2 x 7.6kW, 2 x 9.6kW, 2 x 11.5kW |
| Communication | Ethernet, Wi-Fi and 3G or 4G |
| User Interface & Control | |
| Display | 2 x 4.3-inch touchscreen LCD |
| Button | Emergency shut of |
| User Authentication | App, WebApp, ISO 15118, RFID (Optional), Credit Card Terminal (Optional) |
| Mechanical Specification | |
| Dimensions (W x D x H) | 29.5 x 11.8 x 71.3 inches (750 x 300 x 1810 mm) |
| Weight | < 224.8 lbs. (102 kg), includes two charging cables |
| AC Charging Connector | 16.4Ō Dual charging cable |
| Operation Temperature | -22°F to 131°F (-30°C to 55°C) |
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Warranty | 2 years on parts and labor |
| User Rating | N/A |
| Price | N/A |
Smart Features of EVBolt - BNZO 22 EVB-AC-B2X11DHD
- Dynamic Power Distribution: Intelligently allocates power between ports, optimizing charging efficiency.
- Remote Monitoring: Stay in control with real-time monitoring capabilities for enhanced convenience.
- Customizable Branding: Elevate your charging stations with personalized branding options on the vivid 21.5-inch display.
- Weather-Resistant Design: Built to withstand diverse weather conditions, ensuring reliability in any environment.
- Energy Consumption Analytics: Gain insights into energy consumption patterns, promoting sustainability and cost-efficiency.
Product guides and documents of EVBolt - BNZO 22 EVB-AC-B2X11DHD
Advantages of the EVBolt - BNZO 22 EVB-AC-B2X11DHD
- Market-Leading Power: Enjoy the most potent dual-port AC charger, delivering unmatched charging capabilities.
- Space-Efficient Design: Designed for limited spaces, the compact footprint ensures versatile installation possibilities.
- Revenue Generation: Monetize your charging stations with the high-resolution 1080P display, maximizing advertising revenue.
- User-Friendly Navigation: The 21.5-inch TFT LCD Screen simplifies user interaction, providing a seamless charging experience.
- Commercial Viability: Tailored for commercial charging sites, this charger is a reliable and cost-effective solution.
Disadvantages of the EVBolt - BNZO 22 EVB-AC-B2X11DHD
- Initial Investment: The robust features come with a higher upfront cost.
- Limited Portability: The charger's power may restrict its suitability for certain on-the-go applications.
- Maintenance Complexity: Advanced features may require specialized maintenance, adding to operational complexity.
- Dependency on Electricity Grid: The charger's performance is contingent on a stable electricity grid, subject to regional variations.
- Adaptation Period: Users may require time to familiarize themselves with the array of advanced functionalities.
- Screen Vulnerability: The prominent 21.5-inch display might be susceptible to damage in certain high-traffic environments.
